Sikafloor® MultiDur SLB
Sikafloor® MultiDur SLB is a self leveling, solid color, resin rich, seamless epoxy slurry. Sikafloor aggregate is added during mixing to significantly extend the liquid resin volume without sacrificing desired physical properties, which reduces the neat resin cost compared to other self leveling coatings, maximizes resin economy and allows thicker applications that increase the coatings service life by improving wear resistance. This system also features an aggregate broadcast to improve slip resistance. Sikafloor® MultiDur SLB typically installed at 125 - 156 mils (3.2 - 4.0 mm).
- High compressive strength
- Good mechanical resistance
- Good chemical resistance
- Superior aesthetic finish
- Durable, impermeable and seamless
- Easily cleaned and maintained, resulting in a more sanitary work environment
- Does not support growth of bacteria or fungus
- Neutral odor
- Wide range of standard and custom colors
System Structure
Usage
Sikafloor® MultiDur SLB may be installed over a Sikafloor®-UEF Base System when moisture vapor tolerance and/or a temporary floor is desired.- Food Service Areas
- Clinics and Research Labs
- Commercial Laundries
- Wet and Dry Processing Areas
- Warehouses
Advantages
- High compressive strength
- Good mechanical resistance
- Good chemical resistance
- Superior aesthetic finish
- Durable, impermeable and seamless
- Easily cleaned and maintained, resulting in a more sanitary work environment
- Does not support growth of bacteria or fungus
- Neutral odor
- Wide range of standard and custom colors
Color
Available in a broad range of standard and custom colors. Please refer to the Standard Color selection Guide and contact Customer Service for custom color availability.
System Details

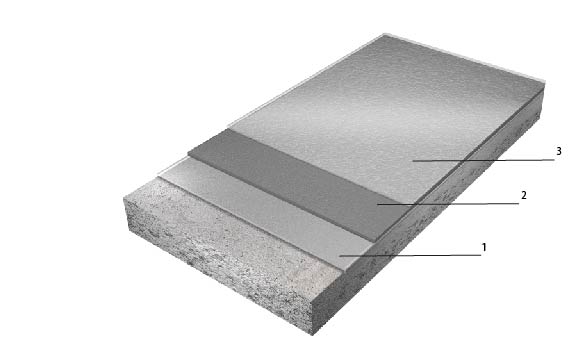

System Structure
Sikafloor® MultiDur SLB ~ 125 - 156 mils (3.2 - 4.0 mm)
| Description | Products | Thickness mils |
| 1. Primer | Sikafloor®-161 | 8 - 10 |
| 2. Body Coat | Sikafloor®-264 + Sikadur®-504 Slurry + Sikadur®-508 Broadcast |
125 - 156 |
| 3. Top Coat | Sikafloor®-264 | 16 - 18 |
Options
| Description | Products | Thickness mils |
| Primers | Sikafloor®-1620
Sikafloor®-165 FS | 12 - 15
8 - 10 |
| Alternate Top Coat | Sikafloor®-510 LPL* + Sikafloor® Urethane Pigment Pack |
12 - 16 |
| 2nd Top Coats | Sikafloor®-315** + Sikafloor® Urethane Pigment Pack
Sikafloor®-340** + Sikafloor® Urethane Pigment Pack | 3 - 4
4 - 6 |
*Sikafloor®-510 LPL would be an alternate top coat to replace Sikafloor®-264 for superior UV resistance, color stability, and increased chemical resistance
**Sikafloor®-315 and Sikafloor®-340 would be optional 2nd top coats on top of Sikafloor®-264 for increased chemical and abrasion resistance
Nominal thickness
125 - 156 mils (3.2 - 4.0 mm)
Minimum thickness
125 mils (3.2 mm)
Water Absorption
| 0.05 % 2 hours boiling | ASTM C413 at 73°F (23°C) and 50% R.H |
Shore D Hardness
| 82 | ASTM D2240 at 73°F (23°C) and 50% R.H |
Abrasion Resistance
| 90 mg (CS-17/1000 rot/1000 g) | ASTM D4060 at 73°F (23°C) and 50% R.H |
Compressive Strength
| 7,426 psi (51.2 Mpa) | ASTM C579 at 73°F (23°C) and 50% R.H |
Tensile Strength
| 4,902 psi (33.8 Mpa) | ASTM D638 at 73°F (23°C) and 50% R.H |
Flexural Strength
| 8,558 psi (59 Mpa) | ASTM D790 at 73°F (23°C) and 50% R.H |
Tensile Adhesion Strength
| >400 psi (2.7 MPa) (concrete failure) | ASTM D4541 at 73°F (23°C) and 50% R.H |
Chemical Resistance
Contact Sika Technical Service for specific information
Coefficient of Friction
| 0.6 | ANSI 326.3 at 73°F (23°C) and 50% R.H |
Application
Ambient Air Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Substrate Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Coverage
| Description | Products | Approximates Sq.Ft./kit |
| 1. Primer | Sikafloor®-161 | 900@8 mils |
| 2. Body Coat | Sikafloor®-264 + Sikadur®-504 Slurry + Sikadur®-508 Broadcast | 175@62 mils
1 bag per 4.5 gallon kit
1.75 bags per 4.5 gallon kit |
| 3. Top Coat | Sikafloor®-264 | 450@16 mils |
Options
| Description | Products | Approximates Sq.Ft./kit |
| Primers | Sikafloor®-1620
Sikafloor®-165 FS | 533@12 mils
1,000@8 mils |
| Alternate Top Coat | Sikafloor®-510 LPL + Sikafloor® Urethane Pigment Pack | 1,210@12 mils
3 quarts per 8.33 gallon kit |
| 2nd Top Coats | Sikafloor®-315 + Sikafloor® Urethane Pigment Pack
Sikafloor®-340 + Sikafloor® Urethane Pigment Pack | 2,340@4 mils
2 quarts per 5.34 gallon kit
2,200@4 mils
2 quarts per 5 gallon kit |
SUBSTRATE PREPARATION
Concrete surfaces must be clean and sound. Remove all dust, dirt, existing paint films, efflorescence, exudates, laitance, form oils, hydraulic or fuel oils, brake fluid, grease, fungus, mildew, biological residues or any other contaminants which may prohibit a good bond.
Prepare the surface by any appropriate mechanical means, in order to achieve a profile equivalent to ICRI - CSP 3-6. The compressive strength of the concrete substrate should be at least 3,625 psi (25 MPa) at 28 days and a minimum of 218 psi (1.5 MPa) in tension at the time of application.
Repairs to cementitious substrates, filling of blowholes, leveling of irregularities, etc. should be carried out using an appropriate Sika profiling mortar. Contact Sika Technical Service for a recommendation.
Primer
Priming for concrete substrate is required. Prime with either Sikafloor®-161, Sikafloor®-1620 or Sikafloor®-165 FS. Allow the primer to cure (varies with temperature and humidity) until tack free before applying subsequent membrane coats. Ensure that the primer is pore-free, pinhole-free and provides uniform and complete coverage over the entire substrate. Sikafloor®-264 may be used as a primer on concrete substrates for Sikafloor Coating Systems subjected to light traffic.
Please refer to the individual most current and respective Product Data Sheet for specific and detailed information.
MIXING
Please refer to the individual Product Data Sheet for each component
APPLICATION
Please refer to the individual Product Data Sheet for each component.
