SikaProof®-808

SikaProof®-808

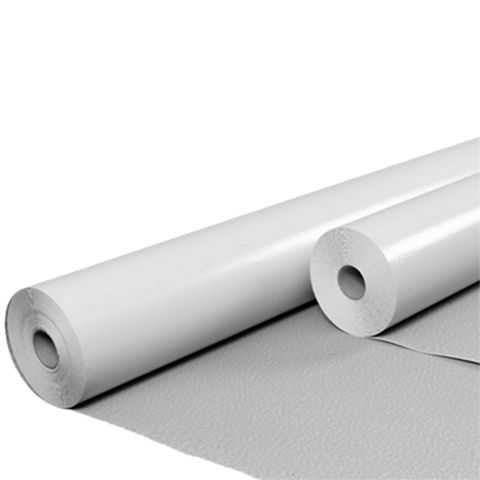

Pre-applied fully bonded TPO sheet membrane for basement waterproofing

SikaProof®-808 is a TPO based sheet membrane for below ground waterproofing of reinforced concrete structures. It is loosely laid onto prepared substrates below the base slab before fixing reinforcement and casting concrete. An adhesively bonding layer on the membrane forms a permanent bond with the fresh concrete and prevents lateral water migration between the membrane and the concrete structure.
Overlap joints are sealed using cold-applied tapes. The total thickness is 1.00 mm.

  • Pre-applied: Fixed before placing reinforcement and casting concrete
  • High flexibility and crack-bridging capabilities
  • No lateral water migration between concrete structure and membrane system
  • Easy to install with fully adhered joints
Product Data Sheet Show all documents

Usage

Damp-proofing, waterproofing and concrete protection for basements against ground water ingress. Suitable for use on:
  • Reinforced concrete base slabs
  • Extension and reconstruction work


Advantages

  • Pre-applied: Fixed before placing reinforcement and casting concrete
  • High flexibility and crack-bridging capabilities
  • No lateral water migration between concrete structure and membrane system
  • Easy to install with fully adhered joints

Packaging

Roll width

Roll length

3.28 ft (1.00 m) or 6.56 ft (2.00 m)

82 ft (25 m)

Color

Light grey bonding layer / grey membrane layer

Product Details

Product Information

Chemical Base

Membrane Layer

Thermoplastic Polyolefin (TPO)

Bonding Layer

Adhesive modified polymer

Shelf Life

18 months from date of production

Storage Conditions

The Product must be stored in original unopened and undamaged packaging in dry conditions and temperatures between 40°F (+5°C) and 86°F (+30°C).  Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage.
Always refer to packaging.

Effective Thickness

Total thickness 1.00 mm (-5 / +10 %)

(ASTM D3767)
System information

System Structure

The following system products must be used in the pre-applied system:

  • SikaProof®-808 sheet membrane
  • SikaProof® Tape-120 for detailing and overlaps
Technical Information

Resistance to Static Puncture

≥ 100 lbs

(ASTM E154)

Tensile Strength

Machine direction

≥ 1450 psi

Cross direction≥ 1450 psi

Elongation

≥ 700 %

(ASTM D412)

Adhesion in peel

Peel adhesion to concrete

≥ 8 lbf/in

Low Temperature Bend

No Crack at -20°F (-29°C)

(ASTM D1970)

Application

Application Information

Substrate Moisture Content

No standing water (refer to important considerations for more information)
Application steps

EQUIPMENT

  • Tape measure
  • Marking pen
  • Razor knife
  • Scissors
  • Pressure roller
  • Clean lint-free cloth
  • Metal straight edge for cutting
  • Protective sheet for cutting

SUBSTRATE QUALITY

  • SikaProof®-808 membrane must be applied on a sufficiently stable substrate to avoid movement during the construction works.
  • The substrate surface must be smooth, uniform and clean.
  • The substrate can be damp or slightly wet, ponding water must be avoided.
