Sikafloor® DecoDur Flake FS
Sikafloor® DecoDur Flake FS is a fast setting, single broadcast flake system using high solids polyaspartic and decorative flakes. This is a rapid return to service system that produces a decorative, easy to maintain, seamless floor with excellent durability and chemical resistance. Sikafloor® DecoDur Flake FS typically installed @ 50 - 75 mils (1.3 - 1.9 mm).
- Fast curing, rapid return to service
- Customizable to any décor
- Resistant to chemicals, abrasions and impacts
- Low odor/low VOC
- Adjustable slip resistance
- Optional integrated cove base
System Structure
Usage
- Food preparation and serving areas
- Grocery stores
- Corridors and walkways
- Museums and galleries
- Offices and lobbies
Advantages
- Fast curing, rapid return to service
- Customizable to any décor
- Resistant to chemicals, abrasions and impacts
- Low odor/low VOC
- Adjustable slip resistance
- Optional integrated cove base
Color
Clear or pigmented only with Sikafloor SCO Color Additive
System Details

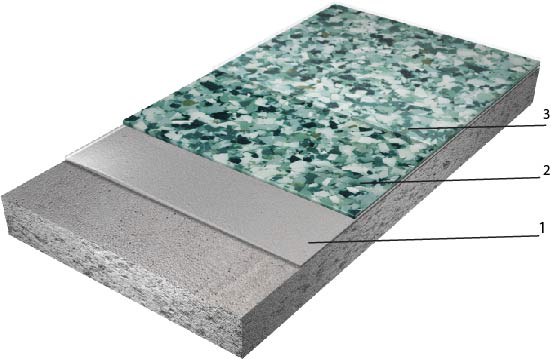

System Structure
Sikafloor® DecoDur Flake FS ~ 50-75 mils (1.3 - 1.9 mm)
| Description | Products | Thickness mils | ||||
| 1. Primer | Sikafloor®-165 FS | 8 - 10 | ||||
|
2. Receiver Coat
| Sikafloor®-511 + Sikafloor®- SCO color Add + Sika Decorative Flake |
10 - 15
| ||||
| 3. Top Coat | Sikafloor®-511 | 12 - 15 | ||||
|
Options | ||||||
| Primer | Sikafloor®-1620 | 12 - 15 | ||||
| Receiver Coat | Sikafloor®-165 FS | 10 - 12 | ||||
| 2nd Top Coats
| Sikafloor®-315 N*
Sikafloor®-304 W NA ** | 3 - 4
5 - 8 |
*Sikafloor-315 N would be an optional topcoat on top of Sikafloor-511 increased chemical and abrasion resistance
**Sikafloor-304 W NA would be an optional top coat on top of Sikafloor-511 for gloss reduction when matte finish required
Nominal thickness
50 - 75 mils (1.3 - 1.9 mm)
Minimum thickness
50 mils (1.3 mm)
Water Absorption
| 0.44% | ASTM C413 at 73 °F (23 °C) and 50 % R.H |
Shore D Hardness
| 75 | ASTM D2240 at 73 °F (23 °C) and 50 % R.H |
Abrasion Resistance
| 54 gm loss (CS-17) 1000 rotations/1000g | ASTM D4060 at 73 °F (23 °C) and 50 % R.H |
Tensile Strength
| 6,500 psi (44.8 MPa) | ASTM C307 at 73 °F (23 °C) and 50 % R.H |
Tensile Adhesion Strength
| > 400 psi (2.7 MPa) | (ASTM D-1583) |
Resistance to Thermal Shock
| Pass | ASTM C884 at 73 °F (23 °C) and 50 % R.H |
Chemical Resistance
Please refer to the individual Product Data Sheets
Permeability to Water Vapor
| 0.3 g/h- m2 | ASTM E96 at 73 °F (23 °C) and 50 % R.H |
Coefficient of Friction
| 0.69 | ANSI 326.3 at 73 °F (23 °C) and 50 % R.H |
Application
Ambient Air Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Substrate Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Coverage
| Description | Products | Approximates Sq.Ft./kit | ||||
| 1. Primer | Sikafloor®-165 FS | 1,000@8mils | ||||
|
2. Receiver Coat | Sikafloor®-511 + Sikafloor SCO Color Add + Sika Decorative Flakes | 1,333@10mils
3 quarts per 8.3 gallon per
4 boxes per 8.3 gallon kit | ||||
| 3 Top Coat | Sikafloor 511 | 888@15mils | ||||
|
Options | ||||||
| Primer | Sikafloor®-1620 | 533@12mils | ||||
| Receiver Coat | Sikafloor®- 165 FS | 1,000@8mils | ||||
| 2nd Top Coats | Sikafloor®-315 N
Sikafloor®-340 | 2,400@4mils
555@5mils |
SUBSTRATE PREPARATION
Concrete surfaces must be clean and sound. Remove all dust, dirt, existing paint films, efflorescence, exudates, laitance, form oils, hydraulic or fuel oils, brake fluid, grease, fungus, mildew, biological residues or any other contaminants which may prohibit a good bond.
Prepare the surface by any appropriate mechanical means, in order to achieve a profile equivalent to ICRI - CSP 3-6. The compressive strength of the concrete substrate should be at least 3,625 psi (25 MPa) at 28 days and a minimum of 218 psi (1.5 MPa) in tension at the time of application.
Repairs to cementitious substrates, filling of blowholes, leveling of irregularities, etc. should be carried out using an appropriate Sika profiling mortar. Contact Sika Technical Service for a recommendation.
Primer
Priming for concrete substrate is required. Prime with Sikafloor®- 165 FS or Sikafloor®- 1620. Allow the primer to cure (varies with temperature and humidity) until tack free before applying subsequent membrane coats. Ensure that the primer is pore-free, pinhole-free and provides uniform and complete coverage over the entire substrate.
Please refer to the individual most current and respective Product Data Sheet for specific and detailed information.
MIXING
Please refer to the individual Product Data Sheets
APPLICATION
Please refer to the individual Product Data Sheets
