Sikafloor® DecoDur Granite FX
Sikafloor® DecoDur Granite FX is a decorative epoxy flooring system using Sikafloor®-218 DF; a two part, low odor, low viscosity epoxy resin, and Sikafloor DecoDur aggregate. The system is self leveling and highly UV resistant making it an ideal system for almost any application requiring long term durability and premium appearance. Sikafloor® DecoDur Granite FX is typically installed @ 93 - 118 mils (2.3 - 3.0 mm).
- Stylish and decorative
- Low VOC
- Smooth matte or finely textured finish
- Excellent UV, mechanical and abrasion resistance
- Very low maintenance
- Durable, seamless, sanitary
System Structure
Usage
- Cafeterias and restaurants
- Education facilities
- Retail stores
- Laboratories and clinics
- Healthcare facilities
- Lobbies and public spaces
Advantages
- Stylish and decorative
- Low VOC
- Smooth matte or finely textured finish
- Excellent UV, mechanical and abrasion resistance
- Very low maintenance
- Durable, seamless, sanitary
Color
Available in various standard color blends, refer to Sikafloor® DecoDur Granite color guide.
System Details

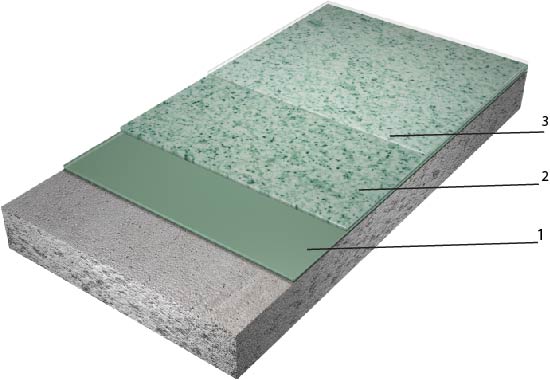

System Structure
Sikafloor® DecoDur Granite FX ~ 93 - 118 mils (2.3 - 3.0 mm)
 |
| Description | Products | Thickness mils |
| 1. Primer/Base Coat | Sikafloor®-264 | 8 - 10 |
| 2. Body Coat | Sikafloor®-218 DF + Sika DecoDur Aggregate |
80 - 100 |
| 3. Top Coat | Sikafloor®-304 W NA | 5 - 8 |
Options
| Description | Products | Thickness mils |
| Primers | Sikafloor®-1620
Sikafloor®-165 FS | 12 - 15
8 - 10 |
| Top Coat | Sikafloor®-315 N* | 3 - 5 |
* Sikafloor-315 N clear would be an optional top coat for increased chemical and wear resistance
Nominal thickness
93 - 118 mils (2.3 - 3.0 mm)
Minimum thickness
93 mils (2.3 mm)
Shore D Hardness
| 80 | ASTM D2240 at 73°F (23°C) and 50% R.H |
Abrasion Resistance
| 76 mg loss (CS-17/1000 rotations/1000g) | ASTM D4060 at 73°F (23°C) and 50% R.H |
Indentation
| 1.3 % | MIl-PRF -24613 |
Compressive Strength
| 7,426 psi (51.2 Mpa) | ASTM C579 at 73°F (23°C) and 50% R.H |
Tensile Strength
| 5,728 psi (39.4 MPa) | ASTM D638 at 73°F (23°C) and 50% R.H |
Flexural Strength
| 9,384 psi (64.7 MPa) | ASTM D790 at 73°F (23°C) and 50% R.H |
Tensile Adhesion Strength
| >400 psi (2.7 MPa) | ASTM D4151 at 73°F (23°C) and 50% R.H |
Chemical Resistance
Contact Sika Technical Service for specific information.
Coefficient of Friction
| >0.51 | ANSI 326.3 at 73°F (23°C) and 50% R.H |
Application
Ambient Air Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Substrate Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Coverage
| Description | Products | Approximates Sq.Ft./kit |
| 1. Primer | Sikafloor®-264 | 900@8 mils |
| 2. Body Coat | Sikafloor®-218 DF + Sika DecoDur Aggregate | 160@80 mils 2 bags per 4.5 gallon kit |
| 3. Top Coat | Sikafloor®-304 W NA | 595@5 mils |
Options
| Description | Products | Approximates Sq.Ft./kit |
| Primers | Sikafloor®-1620
Sikafloor®-165 FS | 533@12 mils
1,000@8 mils |
| Top Coat | Sikafloor®-315 N | 2,400@4 mils |
SUBSTRATE PREPARATION
Concrete surfaces must be clean and sound. Remove all dust, dirt, existing paint films, efflorescence, exudates, laitance, form oils, hydraulic or fuel oils, brake fluid, grease, fungus, mildew, biological residues or any other contaminants which may prohibit a good bond.
Prepare the surface by any appropriate mechanical means, in order to achieve a profile equivalent to ICRI - CSP 3-6. The compressive strength of the concrete substrate should be at least 3,625 psi (25 MPa) at 28 days and a minimum of 218 psi (1.5 MPa) in tension at the time of application.
Repairs to cementitious substrates, filling of blowholes, leveling of irregularities, etc. should be carried out using an appropriate Sika profiling mortar. Contact Sika Technical Service for a recommendation.
Primer/Base Coat
Priming for concrete substrate is required. Prime with either Sikafloor®- 264, Sikafloor®- 1620 or Sikafloor®- 165 FS. Allow the primer to cure (varies with temperature and humidity) until tack free before applying subsequent membrane coats. Ensure that the primer is pore-free, pinhole-free and provides uniform and complete coverage over the entire substrate.
Please refer to the individual most current and respective Product Data Sheet for specific and detailed information.
MIXING
Please refer to the individual Product Data Sheet
APPLICATION
Please refer to the individual Product Data Sheet
