Sikafloor® DecoDur Quartz HD
Sikafloor® DecoDur Quartz HD is trowel-applied, heavy duty epoxy used to reprofile rough or deteriorated concrete surfaces or to create thin-set positive slopes to drains. The second layer is a broadcast and sealed epoxy floor, composed of colored quartz aggregates and finished with a transparent top coat for a seamless and decorative finish. The system offers high compressive strength and accepts abuse from impacts and heavy loading. Sikafloor® DecoDur Quartz HD is typically installed at 1/8'' - 3/16" (3.1 - 4.7 mm).
- Superior mechanical and chemical resistance
- Ideal for harsh but aesthetic environments
- Can be customized to any decor
- Very low maintenance
- High density that resists staining and contamination
- Low odor / low VOC
- Optional Integral cove base and curbs available
System Structure
Usage
- Supermarket food preparation areas
- Hospitals and healthcare facilities
- Pharmaceutical plants
- Laboratories
- Educational facilities
- Showers and locker rooms
- Prisons and correctional facilities
- Arenas and stadiums
- Offices and government buildings
Advantages
- Superior mechanical and chemical resistance
- Ideal for harsh but aesthetic environments
- Can be customized to any decor
- Very low maintenance
- High density that resists staining and contamination
- Low odor / low VOC
- Optional Integral cove base and curbs available
Color
Available in various color patterns, refer to Sikafloor® DecoDur Quartz Color Guide for details.
System Details

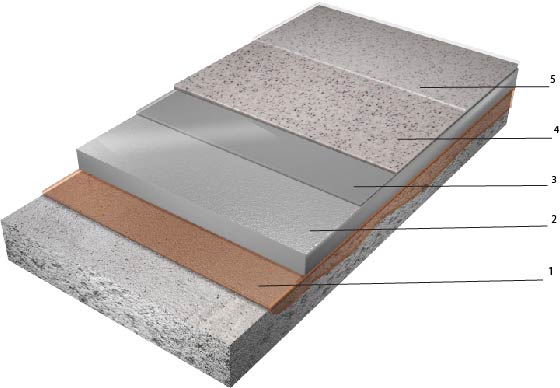

System Structure
Sikafloor® DecoDur Quartz HD ~ 1/8'' - 3/16" (3.1 - 4.7 mm)
| Description | Products | Thickness mils |
| 1. Primer | Sikafloor®-160 | 8 - 10 |
| 2. Mortar | Sikafloor®-160 + Sikadur® 506 Aggregate |
1/8" - 3/16" |
| 3. Grout Coat | Sikafloor®-264 Thixo Lite | 8 - 10 |
| 4. Receiver Coat | Sikafloor®-217 + Sikafloor® Decorative Quartz |
12 - 16 |
| 5. Top Coat | Sikafloor®-217 | 16 - 18 |
Options
| Description | Products | Thickness mils |
| Primers | Sikafloor®-1620
Sikafloor®-165 FS | 12 - 15
8 - 10 |
| Alternate Receiver Coat | Sikafloor®-511* + Sikafloor® Decorative Quartz |
12 - 16 |
| Alternate Top Coat | Sikafloor®-511 | 16 - 18 |
| 2nd Top Coats | Sikafloor®-217
Sikafloor®-315 N**
Sikafloor®-340***
Sikafloor®-304 W NA**** | 12 - 16
4 - 6
4 - 6
5 - 6 |
* Sikafloor®-217 may be replaced by Sikafloor®-511 for greater UV resistance, fast cure time
*** Sikafloor®-340 and Sikafloor®-315 N clear would be an optional 2nd top coat on top of increased chemical resistance
**** Sikafloor®-304 W NA would be an optional 2nd top coat on top of Sikafloor®-217 for gloss reduction or matte finish
Nominal thickness
1/8'' - 3/16" (3.1 - 4.7 mm)
Minimum thickness
1/8'' (3.1 mm)
Water Absorption
| 0.55% 2 hours boiling | ASTM C413 at 73°F (23°C) and 50% R.H |
Shore D Hardness
| 80 | ASTM D2240 at 73°F (23°C) and 50% R.H |
Abrasion Resistance
| 58 mg loss (CS-17/1000 rotations/1000g) | ASTM D4060 at 73°F (23°C) and 50% R.H |
Indentation
| 0.23% | (MIL-PRF-24613) |
Compressive Strength
| 9,200 psi (63.4 MPa) | ASTM C579 at 73°F (23°C) and 50% R.H |
Tensile Strength
| 2,176 psi (14.7 MPa) | ASTM D638 at 73°F (23°C) and 50% R.H |
Flexural Strength
| 5,795 psi (39.95 MPa) | ASTM C580 at 73°F (23°C) and 50% R.H |
Tensile Adhesion Strength
| >400 psi (2.7 MPa) (100 % concrete failure) | ASTM D4541 at 73°F (23°C) and 50% R.H |
Chemical Resistance
Contact Sika Technical Service for specific information.
Coefficient of Friction
| 0.6 | ANSI 326.3 at 73°F (23°C) and 50% R.H |
Application
Ambient Air Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Substrate Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Coverage
| Description | Products | Approximates Sq.Ft./kit |
| 1. Primer | Sikafloor®-160 | 3,000@8 mils |
| 2. Mortar | Sikafloor®-160 + Sikadur® 506 Aggregate | 960@1/8"
20 bags per 15 gallon kit |
| 3. Grout Coat | Sikafloor®-264 Thixo Lite | 900@8 mils |
| 4. Receiver Coat | Sikafloor®-217 + Sikafloor® Decorative Quartz | 600@16 mils
4.8 bags per 4.5 gallon kit |
| 5. Top Coat | Sikafloor®-217 | 450@16 mils |
Options
| Description | Products | Approximates Sq.Ft./kit |
| Primers | Sikafloor®-1620
Sikafloor®-165 FS | 533@12 mils
1,000@8 mils |
| Alternate Receiver Coat | Sikafloor®-511 + Sikafloor® Decorative Quartz | 1,110@12 mils
8.8 quarts per 8.33 gallon kit |
| Alternate Top Coat | Sikafloor®-511 | 833@16 mils |
| 2nd Top Coats | Sikafloor®-217
Sikafloor®-315 N
Sikafloor®-340
Sikafloor®-304 W NA | 450@16 mils
2,400@4 mils
6,000@4 mils
595@5 mils |
SUBSTRATE PREPARATION
Concrete surfaces must be clean and sound. Remove all dust, dirt, existing paint films, efflorescence, exudates, laitance, form oils, hydraulic or fuel oils, brake fluid, grease, fungus, mildew, biological residues or any other contaminants which may prohibit a good bond.
Prepare the surface by any appropriate mechanical means, in order to achieve a profile equivalent to ICRI - CSP 3-6. The compressive strength of the concrete substrate should be at least 3,625 psi (25 MPa) at 28 days and a minimum of 218 psi (1.5 MPa) in tension at the time of application.
Repairs to cementitious substrates, filling of blowholes, leveling of irregularities, etc. should be carried out using an appropriate Sika profiling mortar. Contact Sika Technical Service for a recommendation.
Primer
Priming for concrete substrate is required. Prime with either Sikafloor®- 160, Sikafloor®- 1620 or Sikafloor®- 165 FS. Allow the primer to cure (varies with temperature and humidity) until tack free before applying subsequent membrane coats. Ensure that the primer is pore-free, pinhole-free and provides uniform and complete coverage over the entire substrate.
Please refer to the individual most current and respective Product Data Sheet for specific and detailed information.
MIXING
Please refer to the individual Product Data Sheets.
APPLICATION
Please refer to the individual Product Data Sheets.
