Sikafloor® MultiDur EC
Sikafloor® MultiDur EC is a solid color, high gloss, resin-rich, seamless, epoxy-based floor coating. This is well-suited for medium-duty traffic areas. This general service epoxy coating system delivers an easy to maintain smooth surface with good chemical and abrasion resistance. Sikafloor® MultiDur EC typically installed at 24 - 30 mils (0.6 - 0.8 mm).
- Lower maintenance and life cycle cost versus VCT tile and carpet
- Durable, impermeable and seamless
- Easily cleaned and maintained for a sanitary work environment
- Good chemical resistance
- Protects underlying substrate from a chemical and/or physical attack
- Low odor/low VOC
- Wide range of standard and custom colors
- Optional integral cove, base and curbs
System Structure
Usage
Sikafloor® MultiDur EC may be installed over a Sikafloor-UEF Base System when moisture vapor tolerance and/or a temporary floor is desired.- Medium Duty Manufacturing
- Animal Care Facilities
- Institutions and Correctional Facilities
- Clinical Laboratories
- Walkways and Corridors
Advantages
- Lower maintenance and life cycle cost versus VCT tile and carpet
- Durable, impermeable and seamless
- Easily cleaned and maintained for a sanitary work environment
- Good chemical resistance
- Protects underlying substrate from a chemical and/or physical attack
- Low odor/low VOC
- Wide range of standard and custom colors
- Optional integral cove, base and curbs
Color
Available in a broad range of standard and custom colors. Please refer to the Standard Color selection Guide and contact Customer Service for custom color availability

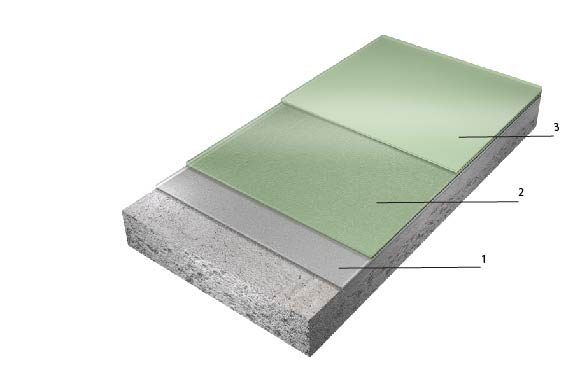

System Details
System Structure
Sikafloor® MultiDur EC ~ 24 - 30 mils (0.6 - 0.8 mm)
| Description | Products | Thickness mils |
| 1. Primer | Sikafloor®-161 | 8 - 10 |
| 2. Top Coat | Sikafloor®-264 | 8 - 10 |
| 3. 2nd Top Coat | Sikafloor®-264 | 8 - 10 |
Options
| Description | Products | Thickness mils |
| Primers | Sikafloor®-1620
Sikafloor®-165 FS | 12 - 15
8 - 10 |
| 2nd Top Coats | Sikafloor®-510 LPL* + Sikafloor® Urethane Pigment Pack
Sikafloor®-315** + Sikafloor® Urethane Pigment Pack
Sikafloor®-340** + Sikafloor® Urethane Pigment Pack | 12 - 16
3 - 4
4 - 6 |
*Sikafloor®-510 LPL would be an alternate 2nd top coat to replace Sikafloor®-264 for superior UV resistance, color stability, and increased chemical resistance
**Sikafloor®-340 and Sikafloor®-315 would be an alternate 2nd top coat on top of Sikafloor®-264 for increased chemical and abrasion resistance
Nominal thickness
24 - 30 mils (0.6 - 0.8 mm)
Minimum thickness
24 mils (0.6 mm)
Water Absorption
| 0.05 % 2 hours boiling | ASTM C413 at 73°F (23°C) and 50% R.H |
Shore D Hardness
| 82 | ASTM D2240 at 73°F (23°C) and 50% R.H |
Abrasion Resistance
| 90 mg loss (CS-17/1000Rotations/1000g) | ASTM D-4060 at 73°F (23°C) and 50% R.H |
Compressive Strength
| 7,426 psi (51.2 Mpa) | ASTM C579 at 73°F (23°C) and 50% R.H |
Tensile Strength
| 4,902 psi (33.8 Mpa) | ASTM D638 at 73°F (23°C) and 50% R.H |
Flexural Strength
| 8,558 psi (59 Mpa) | ASTM D790 at 73°F (23°C) and 50% R.H |
Tensile Adhesion Strength
| >400 psi (2.7 MPa) (100 % concrete failure) | ASTM D4541 at 73°F (23°C) and 50% R.H |
Chemical Resistance
Contact Sika Technical Service for specific information.
Coefficient of Friction
| 0.6 | ANSI 326.3 at 73°F (23°C) and 50% R.H |
Application
Ambient Air Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Substrate Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Waiting / Recoat Times
Please refer to the individual Product Data Sheets
Coverage
| Description | Products | Approximates Sq.Ft./kit |
| 1. Primer | Sikafloor®-161 | 900@8 mils |
| 2. Top Coat | Sikafloor®-264 | 900@8 mils |
| 3. 2nd Top Coat | Sikafloor®-264 | 900@8 mils |
Options
| Description | Products | Approximates Sq.Ft./kit |
| Primers | Sikafloor®-1620
Sikafloor®-165 FS | 533@12 mils
1,000@8 mils |
| 2nd Top Coats | Sikafloor®-510 LPL + Sikafloor® Urethane Pigment Pack
Sikafloor®-315 + Sikafloor® Urethane Pigment Pack
Sikafloor®-340 + Sikafloor® Urethane Pigment Pack | 1,210@12 mils
3 quarts per 8.33 gallon kit
2,340@4 mils
2 quarts per 5.34 gallon kit
2,200@4 mils
2 quarts per 5 gallon kit |
SUBSTRATE PREPARATION
Concrete surfaces must be clean and sound. Remove all dust, dirt, existing paint films, efflorescence, exudates, laitance, form oils, hydraulic or fuel oils, brake fluid, grease, fungus, mildew, biological residues or any other contaminants which may prohibit a good bond.
Prepare the surface by any appropriate mechanical means, in order to achieve a profile equivalent to ICRI - CSP 3-6. The compressive strength of the concrete substrate should be at least 3,625 psi (25 MPa) at 28 days and a minimum of 218 psi (1.5 MPa) in tension at the time of application.
Repairs to cementitious substrates, filling of blowholes, leveling of irregularities, etc. should be carried out using an appropriate Sika profiling mortar. Contact Sika Technical Service for a recommendation.
Primer or Smooth Finish Coating
Priming for concrete substrate is required. Prime with either Sikafloor®-161, Sikafloor®-1620 or Sikafloor®- 165 FS. Allow the primer to cure (varies with temperature and humidity) until tack free before applying subsequent coats. Ensure that the primer is pore-free, pinhole-free and provides uniform and complete coverage over the entire substrate.
Sikafloor®-264 may be used as a primer on concrete substrates for Sikafloor Coating Systems subjected to light traffic. Please refer to the most current and respective Product Data Sheet for further information.
MIXING
Please refer to the individual Product Data Sheet for each component.
APPLICATION
Please refer to the individual Product Data Sheet for each component.
