Sika ComfortFloor® PS-67
Sika ComfortFloor® PS-67 is an ergonomic, sound dampening, low emission floor system that is UV stable with very low maintenance. Sika ComfortFloor® PS-67 is a seamless, hygienic, system using a 100% solids urethane adhesive, 5mm pad of more than 80% recycled content, pigmented self leveling urethane body coat, a urethane receiver coat broadcast with decorative flake and a wear resistant, pigmented water based urethane topcoat. This system is LEED contributing through use of rapidly renewable resources as the raw material basis. Sika ComfortFloor® PS-67 is typically installed @ 312 - 363 mils (8.0 - 9.2 mm).
- Very low VOC emission
- Durable and decorative
- Excellent sound dampening
- Resistant to mechanical abuse
- Excellent UV resistance
- Seamless and sanitary
- Unlimited décor options
- Superior life cycle cost
System Structure
Usage
- Cleanrooms and laboratories
- Classrooms and studios
- Lobbies, offices and corridors
- Public spaces
- Animal care facilities
Advantages
- Very low VOC emission
- Durable and decorative
- Excellent sound dampening
- Resistant to mechanical abuse
- Excellent UV resistance
- Seamless and sanitary
- Unlimited décor options
- Superior life cycle cost
Color
Refer to the Sika ComfortFloor Color Additives Selection Guide. The Sikafloor®-330 should be pigmented the same or close to the color of the Sikafloor®- 305 W NA top coat.
System Details

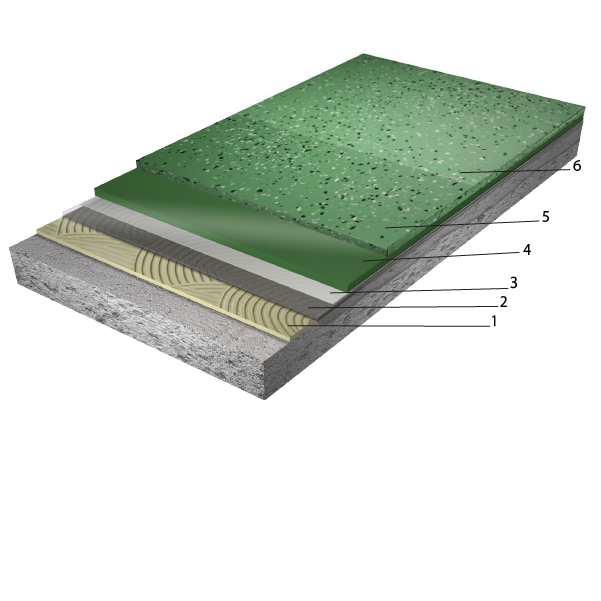

System Structure
Sika ComfortFloor® PS-67 ~ 312 - 363 mils (8.0 - 9.2 mm)
| Description | Products | Thickness mils |
| 1. Adhesive | Sikafloor Comfort Adhesive | 15 - 20 |
| 2. Shockpad | Sikafloor Comfort Regupol-6015H Shockpad | 157 |
| 3. Pore Sealer | Sikafloor ComfortFloor Porefiller (multiple coats) | 30 - 45 mils |
| 4. Body Coat | Sikafloor®-330 + Sikafloor® Epoxy Pigment Pack | 100 - 125 minimum |
| 5. Receiver Coat | Sikafloor®-305 W NA + Sika Decorative Flakes | 5 - 8 |
| 6. Sealer Coat | Sikafloor®-304 W NA | 5 - 8 |
Optional
| Description | Products | Thickness mils |
| 2nd Sealer Coat | Sikafloor®-304 W NA | 5 - 8 |
Nominal thickness
312 - 363 mils (8.0 - 9.2 mm)
Minimum thickness
312 mils (8.0 mm)
Testing
| >80 (14 days) | ASTM D2240 at 73°F (23°C) and 50% R.H |
Abrasion Resistance
| 0.04g CS-17/1000 rotations/1000 g | ASTM D4060 at 73°F (23°C) and 50% R.H |
Impact Strength
| 160 in - lbs | ASTM D2794 at 73°F (23°C) and 50% R.H |
Tensile Strength
| 1,142 psi.(~ 8.0 N/mm²) | ASTM D412 at 73°F (23°C) and 50% R.H |
Tensile Adhesion Strength
| > 500 psi (3.5 MPa) (concrete failure) | ASTM D7234 at 73°F (23°C) and 50% R.H |
Tear Strength
| 142.75 lb./in.(~ 25 N/mm 14 days) | ASTM D624 at 73°F (23°C) and 50% R.H |
Crack Bridging Ability
| Passed | ASTM C1305 at 73°F (23°C) and 50% R.H |
Resistance to Thermal Shock
| <450 | ASTM E468 at 73°F (23°C) and 50% R.H |
External Fire Performance
| Class 1 | ASTM E648 at 73°F (23°C) and 50% R.H |
Chemical Resistance
Contact Sika Technical Service for specific information
Thermal Conductivity
| Very Good |
Footfall Sound Reduction
| Flooring Type | Solid concrete Slab Thickness | IIC Rating of concrete slab alone | IIC Rating of ComfortFloor system on slab |
| ComfortFloor Decorative Pro | 8" | 30 | 53 |
| ComfortFloor Pro | 8" | 30 | 52 |
| ComfortFloor Decorative | 8" | 30 | 40 |
| ComfortFloor | 8" | 30 | 37 |
| ComfortFloor Decorative | 6" | 26 | 36 |
| ComfortFloor | 6" | 26 | 33 |
*All testing was done direct to concrete slab with no ceiling or other additional insulating structures
Coefficient of Friction
| 0.6 | ANSI 326.3 at 73°F (23°C) and 50% R.H |
Residual impression
| 0.002 in (800 lb load) | ASTM F970 at 73°F (23°C) and 50% R.H |
Color
| ∆ E 0.3 (7 days at 158°F/70°C) |
| Very Good |
Gloss level
| 5-15 (60°) | ASTM D523 at 73°F (23°C) and 50% R.H |
Elongation at break
| 180% | ASTM D412 at 73°F (23°C) and 50% R.H |
Application
Ambient Air Temperature
Minimum/Maximum 50˚/85˚F (10˚/30˚C)
Substrate Temperature
Minimum/Maximum 50˚/85˚F (10˚/30˚C)
Coverage
| Description | Products | Approximates Sq.Ft./kit |
| 1. Adhesive | Sikafloor Comfort Adhesive | 727 @ 15 mils |
| 2. Shockpad | Sikafloor Comfort Regupol-6015H Shockpad | 403 @ 157 mils |
| 3. Pore Sealer* | Sikafloor ComfortFloor Porefiller (multiple coats) | 844 @ 15 mils |
| 4. Body Coat | Sikafloor®-330 + Sikafloor® Epoxy Pigment Pack | 123 @ 100 mils minimum
2 quarts per 7.22 gallon kit |
| 5. Receiver Coat | Sikafloor®-305 W NA + Sika Decorative Flakes | 653 @ 5 mils
2 lbs per 2.04 gallon kit |
| 6. Sealer Coat | Sikafloor®-304 W NA | 595 @ 5 mils |
* 3 coats of Porefiller. 1st coat addresses the seams only. 2nd application coats the pad north to south. 3rd application coats the pad east to west.
Optional
| Description | Products | Approximates Sq.Ft./kit |
| 2nd Sealer Coat | Sikafloor®-304 W NA | 595 @ 5 mils |
SUBSTRATE PREPARATION
Concrete surfaces must be clean and sound. Remove all dust, dirt, existing paint films, efflorescence, exudates, laitance, form oils, hydraulic or fuel oils, brake fluid, grease, fungus, mildew, biological residues or any other contaminants which may prohibit a good bond.
Prepare the surface by any appropriate mechanical means, in order to achieve a profile equivalent to ICRI - CSP 3-6. The compressive strength of the concrete substrate should be at least 3,625 psi (25 MPa) at 28 days and a minimum of 218 psi (1.5 MPa) in tension at the time of application.
Repairs to cementitious substrates, filling of blowholes, leveling of irregularities, etc. should be carried out using an appropriate Sika profiling mortar. Contact Sika Technical Service for a recommendation.
PRIMING
Priming of the substrate prior to the application of Sikafloor Comfort Adhesive may be necessary due to the porosity of the concrete. Contact Technical Service for recommendations.
MIXING
Please refer to the individual Product Data Sheets
APPLICATION
Please refer to the individual Product Data Sheets.
