Sikafloor® Merflex PS
Sikafloor® Merflex PS is a polyurethane-based, flexible flooring system designed for areas requiring a water protection membrane with a durable wear surface, such as mechanical rooms. This system has excellent waterproofing, flexibility and crack-bridging properties. Sikafloor® Merflex PS is typically installed at 92 - 98 mils (2.3 - 2.5 mm) thickness.
- Tough, durable and seamless floor
- Performance benefits of both an elastomeric membrane & a wearing surface combined in
one system - Excellent crack bridging capabilities
- Flammability ASTM E648 Class I with recommended finish coat
System Structure
Usage
- Mechanical equipment rooms
- Interior floor spaces where humidity & temperature are micro-controlled
- Access floor systems for computer rooms and offices where liquid lines are prevalent
- Areas requiring an elastomeric water protection surface
Advantages
- Tough, durable and seamless floor
- Performance benefits of both an elastomeric membrane & a wearing surface combined in
one system - Excellent crack bridging capabilities
- Flammability ASTM E648 Class I with recommended finish coat
Color
Refer to the Sika ComfortFloor Color Additives Selection Guide. The Sikafloor®-330 should be the same or close to the color of Sikafloor®-305 W NA top coat to ensure good hiding characteristics.
System Details

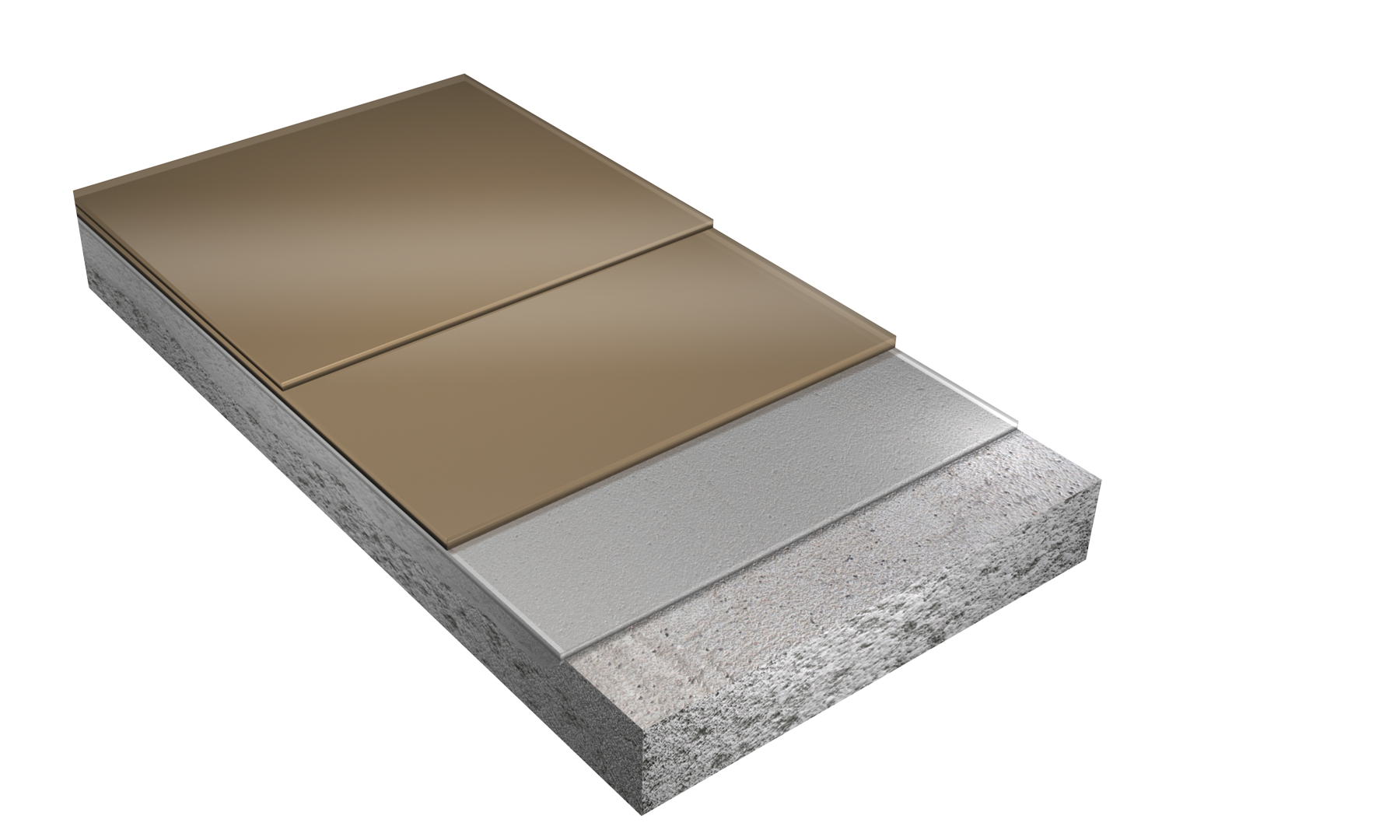

System Structure
Sikafloor® Merflex PS System 92 - 98 mils (2.3 - 2.5 mm)
| Description | Products | Thickness mils |
| 1. Primer | Sikafloor®-160 | 8 - 12 |
| 2. Body Coat | Sikafloor®-330 + Sikafloor® Epoxy Pigment Pack |
80 |
| 3. Top Coat | Sikafloor®-305 W NA | 4 - 6 |
Options
| Description | Products | Thickness mils |
| Primers | Sikafloor®-2570 WB
Sikafloor®-165 FS
Sikafloor®-1620 | 3 - 10
8 - 10
12 - 15 |
| Alternate Top Coats | Sikafloor®-510 LPL* + Sikafloor® Urethane Pigment Pack |
12 - 15 |
| 2nd Top Coats | Sikafloor®-315** + Sikafloor® Urethane Pigment Pack
Sikafloor®-340** + Sikafloor® Urethane Pigment Pack | 3 - 4
4 - 6 |
*Sikafloor®-510 LPL would be an alternate top coat to replace Sikafloor®-305 W NA for superior UV resistance, color stability, and increased chemical resistance
**Sikafloor®-315 and Sikafloor®-340 would be optional top coats on top of Sikafloor®-305 W NA for increased chemical and abrasion resistance
Nominal thickness
92 - 98 mils (2.3 - 2.5 mm)
Minimum thickness
92 mils (2.3 mm)
Shore A Hardness
| >80 (14 days) | ASTM D2240 at 73°F (23°C) and 50% R.H |
Impact Strength
| 160 in - lbs. (1.8 kg-m.) direct and reverse | ASTM D2794 at 73°F (23°C) and 50% R.H |
Tensile Strength
| 1,142 psi.(~ 8.0 N/mm²) | ASTM D412 at 73°F(23°C) and 50% R.H |
Tensile Adhesion Strength
| > 400 psi (concrete failure) | ASTM D4541 at 73°F (23°C) and 50% R.H |
Tear Strength
| 142.75 lb./in.(~ 25 N/mm 14 days) | ASTM D624 at 73°F(23°C) and 50% R.H |
Crack Bridging Ability
| ~180 % (14 days) | ASTM D412 at 73°F (23°C) and 50% R.H |
Resistance to Thermal Shock
| Self Extinguishing | ASTM D635 at 73°F (23°C) and 50% R.H |
Chemical Resistance
Sikafloor®-330 must be sealed with Sikafloor®-305 W NA or another suitable Sikafloor® top coat. For chemical resistance of the system, please consult Sikafloor® Technical Services.
Application
Ambient Air Temperature
Minimum/Maximum 50˚/85˚F (10˚/30˚C)
Substrate Temperature
Minimum/Maximum 50˚/85˚F (10˚/30˚C).
Pot Life
Please refer to the individual Product Data Sheets.
Waiting / Recoat Times
Please refer to the individual Product Data Sheets.
Coverage
| Description | Products | Approximates Sq.Ft./kit |
| 1. Primer | Sikafloor®-160 | 3,000@8 mils |
| 2. Body Coat | Sikafloor®-330 + Sikafloor® Epoxy Pigment Pack | 144@80 mils
2 quarts per 7.22 gallon kit |
| 3. Top Coat | Sikafloor®-305 W NA | 653@5 mils |
Options
| Description | Products | Approximates Sq.Ft./kit |
| Primers | Sikafloor®-2570 WB
Sikafloor®-165 FS
Sikafloor®-1620 | 2,667@3 mils
1,000@8 mils
533@12 mils |
| Alternate Top Coats | Sikafloor®-510 LPL + Sikafloor® Urethane Pigment Pack | 1,210@12 mils
3 quarts per 8.33 gallon kit |
| 2nd Top Coats | Sikafloor®-315 + Sikafloor® Urethane Pigment Pack
Sikafloor®-340 + Sikafloor® Urethane Pigment Pack | 2,340@4 mils
2 quarts per 5.34 gallon kit
2,200@4 mils
2 quarts per 5 gallon kit |
SUBSTRATE PREPARATION
Concrete surfaces must be clean and sound. Remove all dust, dirt, existing paint films, efflorescence, exudates, laitance, form oils, hydraulic or fuel oils, brake fluid, grease, fungus, mildew, biological residues or any other contaminants that may prohibit a good bond.
Prepare the surface by any appropriate mechanical means, in order to achieve a profile equivalent to ICRI - CSP 3-6. The compressive strength of the concrete substrate should be at least 3,625 psi (25 MPa) at 28 days and a minimum of 218 psi (1.5 MPa) in tension at the time of application.
Repairs to cementitious substrates, filling of blowholes, leveling of irregularities, etc. should be carried out using an appropriate Sika profiling mortar. Contact Sika Technical Service for a recommendation.
Priming
Priming for concrete substrate is required. Prime with either Sikafloor®-160, Sikafloor®-161, Sikafloor®-1620, Sikafloor®-165 FS or Sikafloor®-2570 WB.
Allow the primer to cure (varies with temperature and humidity) until tack free before applying subsequent coats. Ensure that the primer is pore-free, pinhole-free and provides uniform and complete coverage over the entire substrate. Please refer to the individual most current and respective Product Data Sheet for specific and detailed information.
Please refer to the individual most current and respective Product Data Sheet for specific and detailed information.
MIXING
Please refer to the individual Product Data Sheets.
APPLICATION
Please refer to the individual Product Data Sheets.
