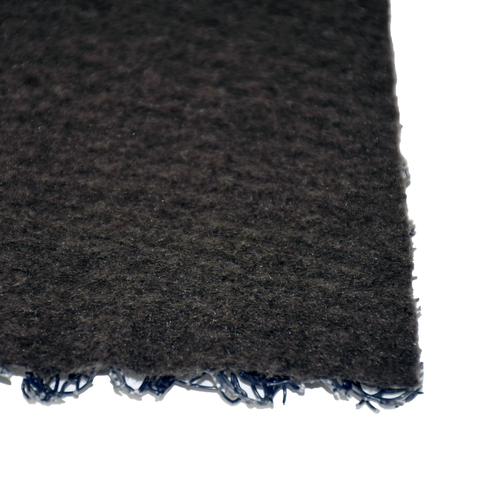

Drainage Composite 3611R

Drainage Composite 3611R is a prefabricated drainage composite

Drainage Composite 3611R is a high quality prefabricated drainage composite designed to protect the waterproofing membrane and provide continuous free flow of water in horizontal applications such as green roofs, plaza decks, planters and earth sheltered structures.

  • Excellent resistance to biological and chemical degradation
  • Ideal for soil environments
  • Compatible with electronic leak detection systems

Product Data Sheet Safety Data Sheet Show all documents

Usage

To create an open flow path to evacuate water from the system even under high loads.

AREAS OF APPLICATION
  • Green Roofs
  • Plaza Decks
  • Planters
  • Sheltered Structures


Advantages

  • Excellent resistance to biological and chemical degradation
  • Ideal for soil environments
  • Compatible with electronic leak detection systems


Packaging

39" x 100 ft (1.0 m x 30.5 m) roll, 54 lbs (29.1 kg) per roll

Colour

  • Top Fabric: Black
  • Core: Black

Product Details

Product Information

Chemical Base

  • Post-industrial recycled polypropylene drainage core of fused, entangled filaments and a polypropylene geocomposite fabric bonded to top side
  • Entangled filaments are molded into an open square waffle pattern

Recycled Content

40%

Shelf Life

N/A

Storage Conditions

N/A

Thickness

0.45" (11.43 mm)

Unit weight

Core Weight: 16 oz/yd2 (542.6 g/m2)

Top Fabric: 4.5 oz/yd2 (152.6 g/m2)

(ASTM D-5261)
Technical Information

Resistance to Static Puncture

Top Fabric: 70 lbs (0.31 kN)

(ASTM D-4833)

Tensile Strength

Top Fabric: 120 lbs (0.54 kN)1

(ASTM D-4632)

1 Machine Direction and Cross Machine Direction

Resistance to Tearing (nail shank)

Top Fabric: 50 lbs (0.22 kN)

(ASTM D-4533)

Water permeability

Top Fabric: 1.8 sec-1

(ASTM D-4491)

Design Considerations

Compressive Load1

>30,000 psf (1436 kN/m2) / No failure2

1 ASTM D-1621 modified and ASTM D-4716.

2 Failure defined as reaching yield point or no continued measurable flow under stated load.

Opening size

Top Fabric: 70 US Sieve (0.212 mm)

(ASTM D-4751)

Flow Rate

Top Fabric: 120 gal/min/ft2 (81.5 L/sec/m2)

(ASTM D-4491)

Application

Application steps

APPLICATION

Drainage Composite 3611R is installed by an authorized Sika Sarnafil Waterproofing Applicator. The drainage composite is loosely laid over the completed waterproofing system. Butt drainage composites together and unfold the 3" (76 mm) fabric overlap onto the top of the adjacent composite to provide continuity. Tape or adhere all fabric overlaps, and tape all butt end joints. Cut drainage composite neatly to fit around penetrations and projections.
