Sarnafastener #12

Sarnafastener #12

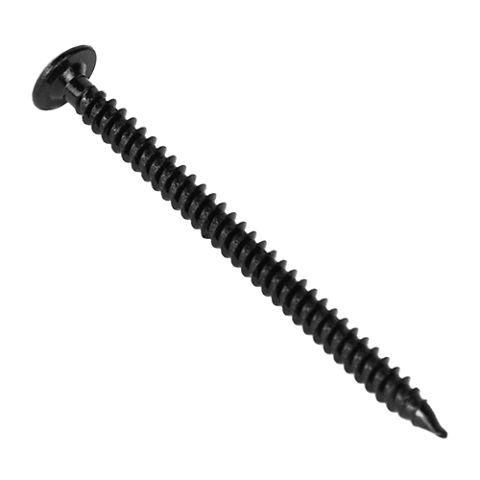

Sarnafastener #12 is a threaded drill point fastener

Sarnafastener #12 is a threaded drill point fastener used within Sarnafil® or Sikaplan® roof systems to attach Sarnatherm® insulation, Sarnatherm roof boards, gypsum roof boards, or other Sika approved boards into steel decking (18 – 24 gauge), wood plank (min. 1-1/2”), or wood sheathing (> 15/32”).

  • Heavy shank & thread diameters.
  • Deep buttress thread for high pullout resistance.
  • Extra sharp spade point for quick installation in new or reroof applications.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used in conjunction with Sarnaplates for attachment direct to the roof deck.    Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recovers


Advantages

  • Heavy shank & thread diameters.
  • Deep buttress thread for high pullout resistance.
  • Extra sharp spade point for quick installation in new or reroof applications.

Packaging

LengthThreadPackagingWeight

1-5/8" (41 mm)

Full

1000 / Pail12 lb (5.4 kg)

2-1/4" (57 mm)

Full1000 / Pail16 lb (7.3 kg)

3" (76 mm)

Full1000 / Pail24 lb (10.9 kg)
4" (102 mm)

3" (76 mm)

1000 / Pail28 lb (12.7 kg)
5" (127 mm)

3" (76 mm)

1000 / Pail35 lb (15.9 kg)
6" (152 mm)

4" (102 mm)

1000 / Pail

40 lb (18.1 kg)

7" (178 mm)

4" (102 mm)

1000 / Pail

48 lb (21.8 kg)

8" (203 mm)

4" (102 mm)

1000 / Pail

50 lb (22.7 kg)

* One #3 Phillips drive bit is included in each box.

Colour

Black

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • ICC Code Compliance – ESR 1157
  • Miami-Dade County


Product Information

Chemical Base

Made from carbon steel, treated with a corrosion-resistant coating to meet the criteria for corrosion resistance.

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

  • Thread Diameter: 0.220" (5.6 mm)
  • Shank Diameter: 0.160" (4.1 mm)
  • Head Diameter: 0.435" (11 mm)
  • Head Style: #3 Phillips

Application

Application steps

APPLICATION INSTRUCTIONS

APPLICATION

The Sarnafastener #12 is fastened straight into the roof deck with a heavy duty (4 amp minimum), variable speed (0 – 2500 rpm), reversible screwgun with a clutch release and a #3 Phillips drive bit.
Sarnafastener #12 must penetrate steel decking and wood plank roof decks by 1" (25 mm) and the underside of wood sheathing by a 1/2" (13 mm).
Care must be taken not to damage the roof deck. Choose the correct fastener length and do not overdrive or underdrive. Pullout tests are required prior to job start when used with existing wood sheathing roof decks for technical evaluation.
