Sarnaplate

Sarnaplate

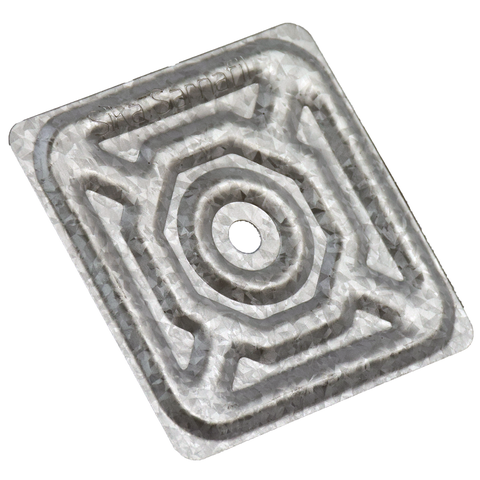

Sarnaplate is a stress plate

Sarnaplate is a specially-designed stress plate used with #12, #14, and #15 Sarnafasteners to attach Sarnatherm® insulation, Sarnatherm® roof boards, gypsum roof boards, or other Sika approved boards directly to the roof deck prior to the installation of the Sarnafil® mechanically-attached or adhered roof membrane.

  • Designed to provide protection to the membrane underside from abrasion by the fastener head.
  • Superior resistance to bending.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used with Sarnafasteners to attach insulation or roof boards direct to the roof deck.    Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications


Advantages

  • Designed to provide protection to the membrane underside from abrasion by the fastener head.
  • Superior resistance to bending.

Packaging

1000 per pail, 45 lbs (20.4 kg) per pail

Colour

Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • ICC Code Compliance – ESR 1157
  • Miami-Dade County

Product Information

Chemical Base

26 gauge (0.46 mm) stamping of SAE 1010 steel with a Galvalume® coating

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Square: 3" (75 mm) x 3" (75 mm)
Round: 3" (75 mm) Diameter

Application

Application steps

APPLICATION INSTRUCTIONS

APPLICATION

Sarnaplate is positioned on the surface of the insulation board. A Sarnafastener is set through the center of it and set into the roof deck. The Sarnaplate clamps the insulation board in place.
