Sikalastic®-644 Lo-VOC
Liquid applied alkaline resistant, low odor, low VOC, single component polyurethane saturating
resin.
Sikalastic®-644 Lo-VOC is a cold applied , highly elastic, aliphatic, single component, alkali resistant, moisture-triggered polyurethane resin designed for easy application as part of Sikalastic®-644 Lo-VOC roofing or waterproofing systems.
- Proven technology with over 30 year track record
- Single component - no mixing and ready to use
- Alkaline resistant - suitable for under tile applications
- Fully reinforced with highly conformable Sika® Reemat Premium or Sika® Fleece
- Moisture triggered chemistry that is rapidly weatherproof after application
- Resistant to ponding water
- Low VOC formula - low Odor
- Highly elastic and crack bridging
- Seamless and fully adhered
- Vapor permeable
- UV resistant and non-yellowing
- Abrasion resistant
- Adheres to most common construction materials when suitable primer is used
Usage
Sikalastic® resins and systems may only be used and installed by experieced professionals.- Embedment and top resin for Sikalastic®-644 Lo-VOC roofing and waterproofing systems reinforced with Sika® Reemat Premium
- Saturating resin for Sikalastic®-644 Lo-VOC systems reinforced with Sika® Fleece
- Typically applied in Sikalastic® systems direct to to substrate for Deck, Plaza, Aemenity Deck, Foundation Walls
- Systems for both new construction and refurbishment
- Ideal for applications involving cementitious overlays and tile mortar
- Split-slab waterproofing
- Vegetated deck waterproofing
- Plaza decks with concrete pavers, and asphalt or concrete paving stones in a sand bed
- Waterproofing under tile in a mortar bed
- Applications involving cementitious and asphalt pavement overlays
- Waterproofing around/beneath mechanical equipment
Advantages
- Proven technology with over 30 year track record
- Single component - no mixing and ready to use
- Alkaline resistant - suitable for under tile applications
- Fully reinforced with highly conformable Sika® Reemat Premium or Sika® Fleece
- Moisture triggered chemistry that is rapidly weatherproof after application
- Resistant to ponding water
- Low VOC formula - low Odor
- Highly elastic and crack bridging
- Seamless and fully adhered
- Vapor permeable
- UV resistant and non-yellowing
- Abrasion resistant
- Adheres to most common construction materials when suitable primer is used
Packaging

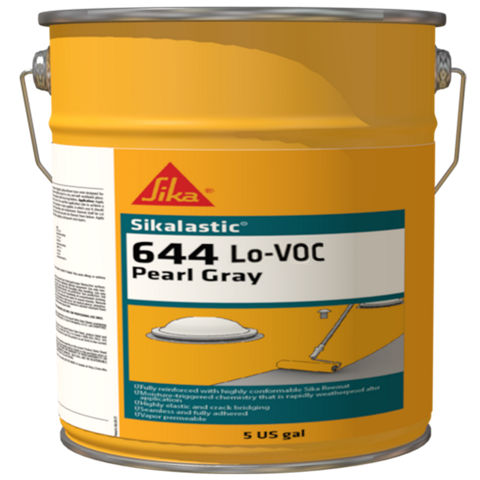

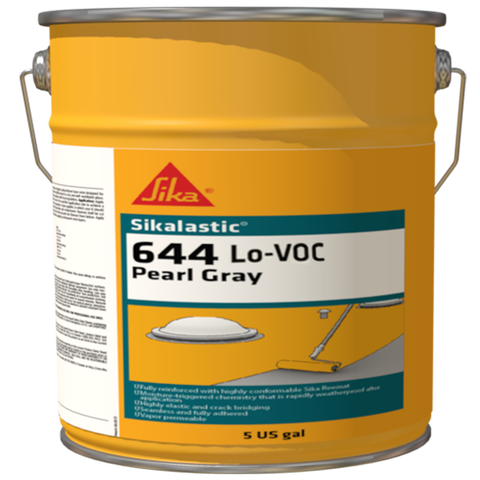

5 gal. (19 L) pails
50 gal. (189.271 L) drums
Colour
White, Standard Gray; custom colors available with minimum order quantitiy
Product Details
ENVIRONMENTAL INFORMATION
- Environmental Product Declaration (EPD) - Cradle-to-Grave
APPROVALS / STANDARDS
• Miami Dade | • Florida Building Code |
• UL 790 Class A | • ASTM D-6083 |
• Cool Roof Rating Council (CRRC) |
Chemical Base
Single component, moisture-triggered, aliphatic polyurethane
Shelf Life
15 months, 5 gal pail
6 months, 50 gal drum
Storage Conditions
Store dry between 35 and 77 °F (2–25 °C). Condition material to 50 - 77 °F (10 - 25°C) before using for ease of application.
Density
11.76 lb./gal. (1409.1 kg/m3)
Volatile organic compound (VOC) content
14.74 g/l | (ASTM D-2369-81) |
Solid content by volume
80.25 % | (ASTM D-2697) |
System Structure
Sikalastic® -644 Lo-VOC System Guide with Sika® Reemat Premium
Sikalastic 15* | Sikalastic 20* | Sikalastic 25* | |
1. Primer | See Priming Guide | See Priming Guide | See Priming Guide |
2. Base Layer: Sikalastic®-644- Lo-VOC | 45 mils wet | 45 mils wet | 45 mils wet |
3. Reinforcement: | Sika® Reemat Premium | Sika® Reemat Premium | Sika® Reemat Premium |
4. Top Layer: Sikalastic®-644- Lo-VOC | 25 mils wet 64 sf/gal. | 30 mils wet 53 sf/gal. | 25 mils wet 64 sf/gal. |
5. Top Layer: Sikalastic®-644- Lo-VOC | - | - | 25 mils wet 64 sf/gal. |
Sikalastic® -644 Lo-VOC System Guide with Sika® Fleece
Sikalastic 15* | Sikalastic 20* | Sikalastic 25* | |
1. Primer | See Priming Guide | See Priming Guide | See Priming Guide |
2. Base Layer: Sikalastic®-644- Lo-VOC | 45 mils wet | 50 mils wet | 60 mils wet |
3. Reinforcement: | Sika® Fleece 120 (US) | Sika® Fleece 140 (US) | Sika® Fleece 170 (US) |
4. Top Layer: Sikalastic®-644- Lo-VOC | 25 mils wet 64 sf/gal. | 25 mils wet 64 sf/gal. | 35 mils wet 45 sf/gal. |
* Substrates: Concrete or cementious, metals, woods, single-ply or bituminous, stone. Primer required (see Substrate Priming Guide). Detailing: Sika® Flexitape Heavy or Sika® Joint Tape SA centered over seams, transitions and properly treated cracks and joints.
Note: Coverage rates provided are optimal and are not guaranteed they will vary depending on temperature, surface roughness, porosity, aggregate selection, embedment, and application technique. For example, using Sikalastic®-644 Lo-VOC Waterproofing System with Sika® Fleece 140 in a 20-yr build up, a potential full system coverage rate for a mod-bit surface could be 14 - 16 sf/gal.. Sikalastic®-644 Lo-VOC Waterproofing System with Sika Reemat Premium in a 15, 20 & 25-yr build up, a potential base coat coverage rate could be 25 - 28 sf/gal.
Resistance to Static Puncture
Sikalastic® 20 with Sika® Reemat Premium | Sikalastic® 20 with Sika® Fleece 140 |
> 55 lbf | > 55 lbf |
Note: Data for other Sikalastic assemblies available upon request |
Tensile Strength
Sikalastic® 20 with Sika® Reemat Premium | Sikalastic® 20 with Sika® Fleece 140 |
1030 psi | 900 psi |
Note: Data for other Sikalistic assemblies available upon request
Tear Strength
Sikalastic® 20 with Sika® Reemat Premium | Sikalastic® 20 with Sika® Fleece 140 |
300 lbf/in | 200 lbf/in |
Note: Data for other RoofPro assemblies available upon request
External Fire Performance
UL 790 Class A | (ASTM E 108) |
Solar Reflectance
Initial Rating 0.87 | White |
Rapid Rating 0.87 | White |
Rapid Rating 0.33 | Standard Grey |
Thermal Emittance
Initial Rating 0.92 | White |
Rapid Rating 0.91 | White |
Rapid Rating 0.91 | Standard Grey |
Solar Reflectance Index
110 (white)
Service Temperature
-22–176 °F (-30–80 °C) intermittent
Dry film thickness
Sikalastic 15 | Sikalastic 20 | Sikalastic 25 |
56 mils dry (min) | 60 mils dry (min) | 76 mils dry (min) |
Sikalastic® -644 Lo-VOC System Guide with Sika® Fleece
Sikalastic 15 | Sikalastic 20 | Sikalastic 25 |
56 mils dry (min) | 60 mils dry (min) | 76 mils dry (min) |
Application
Ambient Air Temperature
41 °F (5 °C) min. / 95 °F (35 °C) max.
Relative Air Humidity
80 % R.H. max.
Dew Point
Beware of condensation.
The substrate and uncured coating must be ≥ 5 °F (3 °C) above dew point.
Substrate Temperature
41 °F (5 °C) min. / 140°F (60°C) max.
Substrate Moisture Content
≤ 4 % moisture content Test method: Sika®-Tramex meter No rising moisture according to ASTM (Polyethylene-sheet)
Pot Life
Sikalastic®-644 Lo-VOC is designed for fast curing. High temperatures combined with high air humidity will increase the curing process. Thus, material inopened containers should be applied immediately. In opened containers, the material will form a film after 1–2 hours approx. ( at 75 °F (24 °C) and 50 % R.H.)
Application Time
Ambient Conditions | Rain Resistant | Touch Dry | Full Cure |
+40 °F / 50 % r.h. | 1 hour | 12 hours | 24 hours |
+50 °F / 50 % r.h. | 1 hour | 6 hours | 18–24 hours |
+70 °F / 50 % r.h. | 1 hour | 4 hours | 12–18 hours |
Note: Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.
Waiting / Recoat Times
Ambient conditions | Minimum waiting time overcoating |
+40 °F / 50 % r.h. | 18 hours |
+50 °F / 50 % r.h. | 8 hours |
+70 °F / 50 % r.h. | 6 hours |
*After 7 days the surface must be cleaned and primed with Sika® Reactivation Primer before continuing.
Note: Times are approximate and will be affected by changing ambient conditions particularly temperature and relative humidity.
Coverage
Sika Reemat | Sika Fleece |
53 sf/gal - 30 mils wet film thickness | 23 sf/gal - 70 mils wet film thickness |
40 sf/gal - 40 mils wet film thickness | 21 sf/gal - 75 mils wet film thickness |
35 sf/gal - 45 mils wet film thickness | 17 sf/gal - 95 mils wet film thickness |
NOTE: Coverage rates are optimal - coverage rates will vary depending on temperature, surface roughness and porosity, and application technique.
SUBSTRATE PREPARATION
Concrete and Cementitious Substrates New concrete shall be allowed to cure a minimum of 28 days. Concrete shall have a minimum compressive strength of 20.7 MPa (3000 psi) and exhibit a minimum tensile bond strength of 1.4 MPa (200 psi). time. Moist or sheet curing methods should be used, as opposed to the use of curing compounds, which may interfere with the bond of the membrane. Inspect the concrete, including upstands, and all areas should be hammer or chain drag tested. Concrete must be suitably finished, preferably by wood float or steel pan. A power float finish is acceptable where the surface is prepared to avoid laitance (a tamped finish is not acceptable). The surface finish must be uniform and free from defects such as laitance, voids or honeycombing.
Cementitious or mineral based substrates must be prepared mechanically using abrasive blast cleaning or scarifying equipment to remove cement laitance and to achieve an open textured surface (CSP 2-4 per ICRI guidelines). Loose friable material and weak concrete must be completely removed and surface defects such as blowholes and voids must be fully exposed. The amount of embedment coat required may increase over rough or highly porous surfaces.
Repairs to the substrate, filling of joints, blowholes/voids and surface levelling must be carried out. Consult Sika for product recommendations based on project requirements. High spots must be removed by grinding or similar method. Outgassing is a naturally occurring phenomenon of concrete that can produce pinholes in liquid applied materials. The concrete must be carefully assessed for moisture content, air entrapment, and surface finish prior to any roofing work. Particular requirements for priming must also be considered. Installing the primer and membrane either when the concrete temperature is falling or stable can reduce outgassing. It is generally beneficial, therefore, to apply the primer and embedment coat in the late afternoon or evening.
Gypsum and Cement Based Sheathing
Sheathing boards shall be clean, dry and dust free, and shall be properly secured to the structure. Secure loose boards if in sound condition. Damaged or contaminated boards shall be removed and replaced.
Brick and Stone
Mortar joints must be sound and preferably flush pointed. Power wash and use biodegradeable non-sudsing detergent with clean water rinse as required.
Asphalt
Asphalt contains volatiles which can cause bleeding and slight non-detrimental staining. The asphalt must be carefully assessed for moisture and/or air entrapment, grade and surface finish. Power wash and use non-sudsing detergent with clean water rinse as required. All major cracks should be sealed to allow continuity of the Sikalastic® system.
Bituminous Felt
Ensure that bituminous felt is firmly adhered or mechanically fixed to the substrate. Bituminous felt shall not contain badly degraded areas. Power wash and use biodegradeable non-sudsing detergent with clean water rinse as required. Treat blisters by star cutting and removing any underlying water. Allow to dry and readhere using suitable adhesive.
Bituminous Coatings
Bituminous coatings should not be sticky or mobile. Volatile mastic coatings, or old coal tar coatings are not acceptible. Remove any loose or degraded coatings.
Metals
Metals must be in sound condition. Ferrous metals should be thoroughly cleaned by grinding or blast cleaning prior to priming (SSPC-SP3 to SP11 near-white metal). Non-ferrous metals are prepared by removing any deposits of dust and oxidation and abrading to bright metal. Wire brushing can be used for soft metal such as lead. The surface must be clean and free from grease which, if present, must be removed with a solvent wipe or wash with detergent, rinse and dry. Stainless Steel must be mechanically abraded or ground to create an appropriate anchor profile.
Wooden Substrates
Plywood and timber based roof decks must be in good condition, firmly adhered and mechanically fixed. All plywood should be identified as conforming to PS 1 for construction and industrial plywood by grade, APA (American Plywood Association) trademark, or equivalent. For maximum smoothness, EXT Type APA, Grade A-C should be used, and the “A” side should be positioned to receive the Sikalastic® resin. Plywood decks to receive resin directly shall be at least 1/2'' thick and attached and supported according to APA guidelines, using only non-rusting screw, spiral or coated nail type fasteners. A good practice would be to recess or counter sink fasteners 1/8 to 1/4'' and fill with Sikaflex® sealant. Suitable edge support to prevent differential deflection between panels shall be provided. Panel edges shall be tongue and groove or supported on solid blocking. Space panels 1/8 to 3/16'' at panel ends.
Timber and timber based roof decks require additional reinforcement such as the installation of plywood, approved insulation or cover board. Small timber protrusions and suitable decks may be treated directly, provided that the timber is of exterior quality, e.g. plywood. Fill joints flush with Sikaflex® sealant.
Paints and Coatings
Ensure the existing material is sound and firmly adhered. Remove any loose or degraded coatings. Ensure the surface is clean and free from oxidation, dust, dirt, and debris. Power wash and use biodegradable non-sudsing detergent with clean water rinse as required. Allow to dry.
Existing Sikalastic® System The existing Sikalastic® System shall be soundly adhered to the substrate. Clean the membrane using a pressure washer at approximately 140bar (2000 psi) and biodegradeable non-sudsing detergent with clean water rinse. Allow to dry.
Sikaplan® Sarnafil® Membranes
Clean the membrane using a pressure washer at approximately 140bar (2000 psi) and biodegradeable non-sudsing detergent with clean water rinse or use approved PVC membrane cleaner. Allow to dry.
MIXING
No mixing necessary for Resins
APPLICATION
Detailing
Non-structural Cracks Up To 1/16''
Detail application not necessary. Apply embedment/base resin layer per instruction. Non?structural cracks between 1/16'' and 1/4'' Rout and seal with Sikaflex® sealant. Apply 40–45 mil resin layer embedded with 3'' Sika Flexitape Heavy or use Sika® Joint Tape SA centered over the crack. Apply embedment/base resin layer per instruction.
Cracks and Joints Between 1/4" and 1''
Rout and sealwith Sikaflex® sealant. Apply bond breaker tape sufficient to span width of crack or joint followed by 40-45 mil resin layer embedded with 6'' Sika® Flexitape Heavy or use Sika® Joint Tape SA centered over crack or joint. Apply embedment/base resin layer by terminating Sika® Reemat or Sika® Fleece at edges of crack or joint overlapping Sika® Flexitape Heavy or Sika® Joint Tape SA, a minimum of 2 inches on both sides of the crack or joint.
Joints Greater Than 1''
Treat as expansion joint. Consult Sika for recommendations.
Metal Seams and Plywood/Cover Board Joints
Apply 40–45 mil resin layer embedded with 3 or 6'' Sika® Flexitape Heavy centered over seam. Alternativly Sika® Joint Tape SA can be applied centered over seam. Apply embedment resin layer per below.
Transitions Between Dissimilar Materials
Apply 40-45 mil resin layer embedded with Sika® Flexitape Heavy or use Sika® Joint Tape SA centered over edge. Apply embedment/base resin layer per instruction.
Embedment/Base Resin Layer with Sika® Reemat Premium Reinforcement
Mixing not required. Apply Sikalastic®-644 Lo-VOC with a 1/2'' nap phenolic resin core roller. Material can also be squeegee or spray applied, in which case it should be backrolled prior to embedding Sika® Reemat Premium. Place Sika® Reemat in wet base resin layer overlapping seams a minimum of 2'' (place frayed edge over cut edge of roll) and apply wet roller to topside to saturate completely. After approximately 5 minutes the binder will begin to dissolve allowing the fiber strands to conform to irregular surfaces. Do not over work once the fibers have conformed to the substrate. Allow to cure 12 hours at 70 °F and 50 % R.H. or until tack free before top resin layer. Keep clean and dry and apply top resin layer within 7 days. If window is exceeded clean with non-sudsing detergent and clean water rinse, and allow to dry prior to application of Sika® Concrete Primer Lo-VOC or Sika® Reactivation Primer.
Top Resin Layer with Sika® Reemat Premium Reinforcement
Mixing not required. Apply Sikalastic®-644 Lo-VOC with a 1/2'' nap phenolic resin core roller. Material can also be squeegee or spray applied, in which case it should also be backrolled. In the case of Sikalastic 25-year system allow the first top resin layer to cure 12 hours at 70 degrees F and 50% R.H. or until tack free before applying second top resin layer. On top of the complete Sikalastic system additional resin layers may be applied with aggregate for slip resistance. Keep clean and dry and apply additional resin layers within 7 days. If window is exceeded clean with non-sudsing detergent and clean water rinse, and allow to dry prior to application of Sika® Concrete Primer Lo-VOC or Sika® Reactivation Primer.
Wet on Wet Application with Sika® Fleece Reinforcement
Mixing not required. To primed substrate apply two-thirds of the Sikalastic®-644 Lo-VOC with a 1/2'' nap phenolic resin core roller. Immediately place specified Sika Fleece into wet resin overlapping seams a minimum of 3” along the edge and 6” end-to-end. Apply wet roller to topside with light pressure to saturate fleece from bottom and ensure air pockets are completely removed. Immediately apply all of remaining one-third of Sikalastic®-644 Lo-VOC resin. Ensure even and complete fleece saturation from topside.
Aggregated Surfacing
Supplemental aggregate surfacing is required for all applications that will experience direct foot traffic such as balconies, terraces, walkways, and plazas. It is also recommended for areas that experience maintenance foot traffic. The aggregate surfacing is applied in a supplemental resin layer after the Sikalastic membrane has been installed. Aggregate is not applied into the top layer of the roofing/waterproofing membrane resin.
Seed and Back Roll Option
The Seed and Backroll option is primarily intended for use for maintenance traffic-type applications where enhanced slip resistance is required. Apply Sikalastic®- 644 Lo-VOC resin at 15 mils wet film thickness to the installed, cured membrane system. While the supplemental resin application is still wet seed with kiln dried, iron free aggregate. Back roll the surface to encapsulate the aggregate in the Sikalastic resin.
Full Broadcast and Seal Option
The Full Broadcast and Seal option is intended for use for applications where both enhanced slip resistance and physical protection of the roofing membrane is required. Apply Sikalastic®- 644 Lo-VOC resin at 15 mils wet film thickness to the installed, cured membrane system. While the supplemental resin application is still wet broadcast to rejection (full broadcast/beach) with kiln dried, iron free aggregate. Remove excess aggregate after cure. Seal with an additional coat of Sikalastic resin.
Aggregate Selection
Use clean, rounded or semiangular, oven dried quartz sand with a minimum hardness of 6.5 per the Moh’s scale. It should be supplied in prepackaged bags and free of metallic or other impurities. The following size gradations are recommended: ▪ 16–30 or 20–40 mesh for pedestrian traffic systems.
Overburden Application
Sikalastic®-644 Lo-VOC is used as the waterproofing layer under a wide range of overburden materials. Depending on the overburden type, different surfacing, drainage, and protection layers may be required
Protected Membrane Assemblies
Install Sika drainage mat over the Sikalastic®-644 Lo-VOC waterproofing system prior to adding the extruded polystyrene insulation layer. No aggregated membrane surfacing is required.
Concrete Pavers with Pedestal Supports
Install Sika drainage mat over the Sikalastic®-644 Lo-VOC waterproofing system to provide additional protection of the membrane under the pedestal supports.
Tile Adhered in a Cementitious Thin-Set Adhesive
A full aggregate broadcast surfacing is required to provide an adhesion key for the tile adhesive. Apply a supplemental 15 wet mils of Sikalastic®-644 Lo-VOC waterproofing resin, followed by a full broadcast of 16- 30 or 12-20 kiln-dried sand to refusal, typically 40-50 lbs./100 sf. Remove all loose sand once resin has cured. Do not seal the aggregated surface.
Tile in a Cementitious Setting Bed
Install Sika drainage mat over the Sikalastic®-644 Lo-VOC waterproofing system prior to installation of the cementitious setting bed, which is typically 1-1/2"-3" in thickness, and can be sloped to create positive drainage. Secure the Sika drainage mat by spot-adhering with Sikaflex® 11 FC to the Sikalastic®-644 Lo-VOC waterproofing system as required to prevent shifting during setting bed installation. Bi-level drains should be installed to provide drainage capability at the membrane level as well as drainage of the finished surface.
Concrete/Asphalt Pavers in a Sand Setting Bed
Install Sika drainage mat over the Sikalastic®-644 Lo-VOC waterproofing system prior to installing the sand setting bed, which is typically either graded silica sand or a mix of sand and asphalt. Secure the Sika drainage mat by spot-adhering with Sikaflex® 11 FC to the Sikalastic®-644 Lo-VOC waterproofing system as required to prevent shifting during setting bed installation. Bi-level drains should be installed to provide drainage capability at the membrane level as well as drainage of the finished surface.
Vegetation and Growing Media/Soil
The selection of a vegetated overburden assembly is specified by a qualified design professional. At a minimum, install Sika® GRS Drain Mat over the Sikalastic®-644 Lo-VOC waterproofing system prior to application of all other overburden components. Secure the Sika® GRS Drain Mat to the Sikalastic®-644 Lo-VOC waterproofing system by spot-adhering with Sikaflex® 11 FC as required to prevent shifting during vegetative overburden assembly components . Bi-level drains should be installed to provide drainage capability at the membrane level as well as drainage at grade level.
Concrete Pavement
Install Sika® 1000 Drain Mat over the Sikalastic®-644 Lo-VOC waterproofing system prior to application of the new concrete. Secure the Sika® 1000 Drain Mat to the Sikalastic®-644 Lo-VOC waterproofing system by spot adhering with Sikaflex® 11 FC as required to prevent shifting during concrete placement. Bi-level drains should be installed to provide drainage capability at the membrane level as well as drainage of the finished surface.
CLEANING OF TOOLS
Clean all tools and application equipment with appropriate solvent immediately after use. Hardened and/or cured material can only be removed mechanically
