Sarnaplate Low Profile

Sarnaplate Low Profile

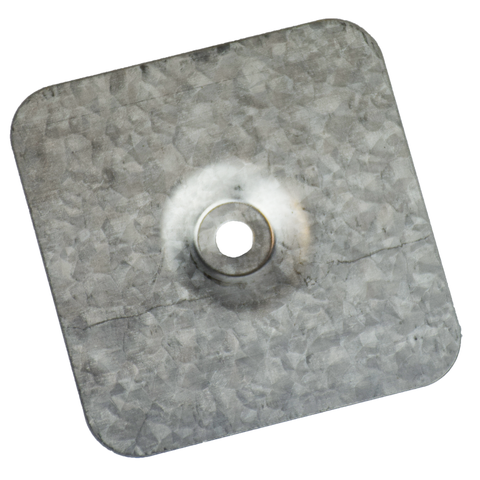

Sarnaplate Low Profile is a specially-designed square stress plate

Sarnaplate Low Profile is a specially-designed square stress plate used with #12, #14 and #15 Sarnafasteners to attach Sarnatherm® insulation, Sarnatherm® roof boards, gypsum roof boards, or other Sika approved boards directly to the roof deck prior to the installation of Sarnafil® or Sikaplan® adhered roof system. Sarnaplate Low Profile is not recommended for use directly over a plywood or OSB surface.

  • Minimize telegraphing through the membrane.
  • The low profile surface also increases bonding around the plate.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used with Sarnafasteners to attach insulation or roof boards direct to the roof deck.     Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications


Advantages

  • Minimize telegraphing through the membrane.
  • The low profile surface also increases bonding around the plate.

Packaging

1000 per pail, 58 lbs (26.3 kg) per pail

Colour

Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Miami-Dade County

Product Information

Chemical Base

22 gauge (0.71 mm) stamping of SAE 1010 steel with a Galvalume® coating

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Length: 2.75" (70 mm)
Width: 2.75" (70 mm)

Application

Application steps

APPLICATION INSTRUCTIONS

APPLICATION

Sarnaplate Low Profile is positioned on the surface of the insulation or roof board, a Sarnafastener is set through the center of it and fastened into the roof deck. Sarnaplate Low Profile clamps the insulation board or roof board in place. NOTE: Care must be taken when installing over roof boards to ensure plate sits flush with roof board.
