SikaShield® E54 PE 3 mm

SikaShield® E54 PE 3 mm

118 mil SBS-modified bituminous base ply, torch-applied

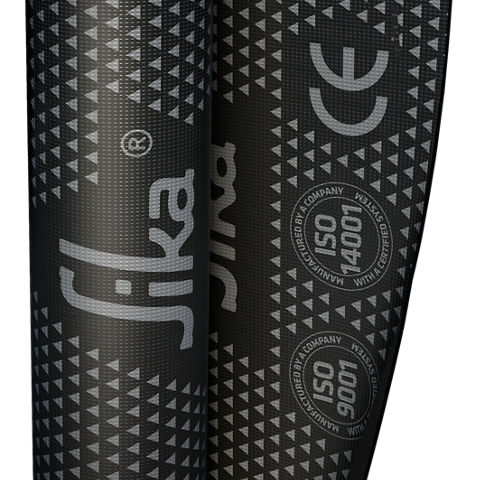

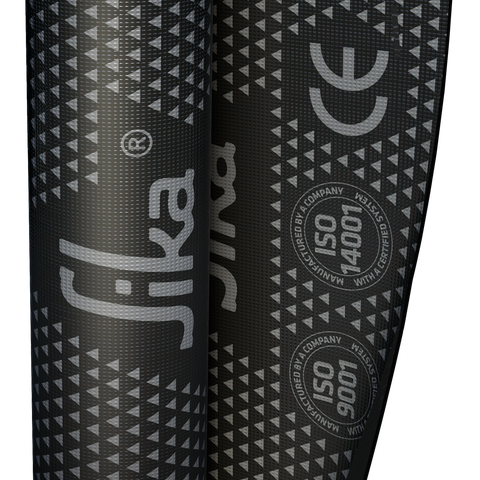

SikaShield® E54 PE 3 mm is a 118 mil thick SBS-modified bituminous waterproofing membrane. It is reinforced with a non-woven polyester fabric dimensionally stabilized with fiberglass and is flexible at -0.4°F (-18°C). The top surface is coated with a smooth surface, which ensures the bond of the overlying layer. The underside of the product has a burn-off film for easy torch application or a non-woven polypropylene fabric for cold or hot application.

  • Double reinforcement
  • No cant strip needed
  • Excellent dimensional stability
  • Easy to install by various methods (torch, cold and mop)
  • Fully bonded
  • High durability
  • Good mechanical properties (tensile, tear, shear)
Product Data Sheet Show all documents

Usage

The Product is used as a base or intermediate ply roofing membrane for:
  • Flat and sloped roofs
  • Inverted roofs
  • New construction and refurbishment projects
  • Single slab or prefabricated
  • Stressed skin structures


Advantages

  • Double reinforcement
  • No cant strip needed
  • Excellent dimensional stability
  • Easy to install by various methods (torch, cold and mop)
  • Fully bonded
  • High durability
  • Good mechanical properties (tensile, tear, shear)

Packaging

Roll width

39.4" (1.0 m)

Roll length

32.8 ft (10.0 m)

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Meets or exceeds the ASTM D6163, Type I, Grade S
  • Underwriters Laboratory (UL)
  • FM Global

Product Information

Chemical Base

SBS-modified bitumen

Reinforcing Material

non-woven spunbond polyester fabric stabilized with fiberglass

Shelf Life

36 months from date of production

Storage Conditions

The Product must be stored in original unopened and undamaged packaging in dry conditions and temperatures between 41°F (5°C) and 95°F (35°C). Store in a vertical position. Do not stack pallets of the rolls on top of each other, or under pallets of any other materials during transport or storage. Always refer to packaging.

Top surface

Polyethylene (PE) burn-off foil

Bottom Surface

Polyethylene (PE) burn-off foil. The "SF" version features a non-won polypropylene fabric for cold/mop application

Effective Thickness

118 mil (3.0 mm)

(ASTM D5147)

Weight

88 lb/roll
Technical Information

Dimensional Stability

Longitudinal (MD)

0.1 %

Transversal (CMD)

0.1 %

Tear Strength

Longitudinal (MD)

117 lbf

Transversal (CMD)

80 lbf

External Fire Performance

Class A

(UL 790)

Permeability to Water Vapor

0.6 ng/(Pa·s·m²)

0.01 Perms

(ASTM E96)

Flow resistance

≥ 249.8 °F (121 °C)

(ASTM D5147)

Low Temperature Bend

≤ -0.4°F (-18°C)

(ASTM D5147)

Application

Application Information

Ambient Air Temperature

Minimum

41°F (5°C)

Maximum

86°F (30°C)

Relative Air Humidity

Max. 80 %

Substrate Temperature

Minimum

41°F (5°C)

Maximum

86°C (30°C)
Application steps

SUBSTRATE QUALITY

SYSTEM DESIGN

Consider the following when designing the system:

  • The supporting structure must be of sufficient structural strength to support all new and existing layers of the system build-up.

  • If used as a roof system, the complete system must be designed to withstand and be secured against wind uplift loadings.



SUBSTRATE CONDITION

The substrate surface must be uniform, firm, smooth and free of any sharp protrusion or burrs, clean, dry, free of grease, laitance, oil, dust and loosely adhering particles.

APPLICATION

ALIGNMENT

To avoid coinciding joints, lay the membranes parallel to one another. When applying on another bituminous membrane, make sure to straddle the overlaps of the previous layer.

  1. Unroll the membrane.
  2. Align the membrane.
  3. Re-roll the membrane before application.



MEMBRANE OVERLAPS

  1. Overlap the membranes by a minimum of 4" (100 mm) on the sides and 6" (150 mm) on each end or as specified by the supplier.
  2. At the end overlap, cut off a corner measuring 4" (100 mm) per side at an angle of 45°.



TORCHING

  1. Heat the substrate and the backing film on the underside of the membrane with a gas burner.
  2. When the backing film starts to melt, the membrane is ready to stick.
  3. Roll the heated membrane forward and press it firmly against the substrate to bond it.
  4. Make sure a bead of melted bitumen is visible along the full length of the overlap sides and ends when laying.



Suitable substrates for torching

  • Concrete
  • Perlite screed
  • Bituminous membranes with a smooth surface
  • Coatings (check the compatibility)
  • Brick masonry
  • Cementitious screeds



FASTENING

When used as a roofing sheet, the membrane can be mechanically fixed to the substrate by using the correct type of fasteners.

The number of fixings, type and position depend on wind uplift forces to be resisted, pull-out strength of the fixing screws, the elastic limit of the membrane and the appropriate safety factors.

Contact Sika Technical Service for additional information.



Suitable substrates for fastening

  • Concrete
  • Wood
  • Metal
  • Perlite screed
  • Bituminous membranes
  • Coatings (check the compatibility)



DETAILING

Use a sharp knife to cut in all details such as internal and external corners, upstands, vent pipes, drains, support metalwork etc.



Refer to the relevant method statement for further information on detailing.
