Aluminum Tape

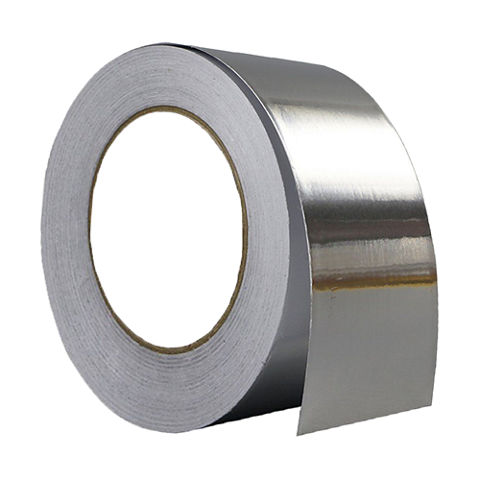

Aluminum Tape is an aluminum foil faced pressure sensitive taping

Aluminum Tape is an aluminum foil faced pressure sensitive taping, which allows for a separation barrier between contaminated materials and Sarnafil® or Sikaplan® membranes.

  • Pressure sensitive adhesive
  • Barrier between contaminated materials
  • Paper liner covers adhesive
  • Conforms to irregular surfaces

Product Data Sheet Safety Data Sheet Show all documents

Usage

Separation barrier    Areas of Application
  • Pipes
  • Edge Metal
  • Seams


Advantages

  • Pressure sensitive adhesive
  • Barrier between contaminated materials
  • Paper liner covers adhesive
  • Conforms to irregular surfaces


Packaging

24 rolls per case

Product Details

Product Information

Chemical Base

A 25/50 rated aluminum foil tape with a pressure sensitive adhesive applied to one side for bonding to substrates. The adhesive is covered with a paper liner.

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Width: 2" (51 mm)
Length: 150 ft (45.7 m)
Technical Information

Tensile Strength

23 lbs/in width (403 N/100 mm)

Elongation

11 %

Service Temperature

-20 - 150°F (-29 - 66°C)

Design Considerations

Adhesion to Backing36 oz/in width (39 N/100 mm)
Adhesion to Steel    75 oz/in width (81 N/100 mm)
Adhesive                              Rubber
Backing                                2 mil dead soft aluminum foil

Application

Application steps

APPLICATION

Aluminum Tape is to be applied to a clean, prepared surface. The surface preparation may include but is not limited to scraping and wiping the surface free of any excessive contaminates. Once the surface has been prepared apply the Aluminum Tape to the prepared surface making sure all contaminated areas are covered completely with the Aluminum Tape. Once the Aluminum Tape is applied, make sure it is securely in place and does not allow any contaminates to be exposed to the contact area of the membrane.
