Sarnatred-V 2.5

Thermoplastic heat welded walkway

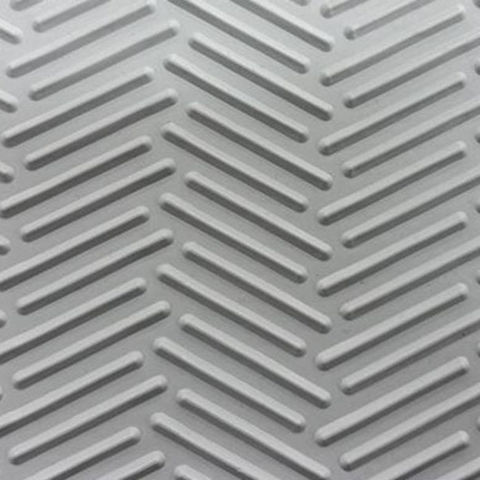

Sarnatred-V 2.5  is a thermoplastic rolled-out, heat welded walkway. With a “chevron” design, Sarnatred-V 2.5 is used to protect the Sarnafil or Sikaplan Universal membrane and provide a path for foot traffic.

  • Dimensionally stable and durable
  • Chevron textured surface pattern

Show all documents

Usage

Used as a traffic-bearing rooftop walkway on Sika’s Roofing Systems and a protection layer around rooftop equipment to protect the roofing membrane from damage.    AREAS OF APPLICATION
  • New Roofs
  • Recover Roofs
  • Mechanically Fastened Systems
  • Adhered Systems


Advantages

  • Dimensionally stable and durable
  • Chevron textured surface pattern


Colour

White, Gray or Safety Yellow

Product Details

Product Information

Chemical Base

Polyester reinforced membrane

Shelf Life

N/A

Storage Conditions

N/A

Length

50 ft (15 m)

Width

30" (76.2 cm)

Overall Thickness

0.12" (3.05 mm)

(ASTM D-751)
Technical Information

Resistance to Static Puncture

96 lbs

Tensile Strength

200 Lbf  (grab)

(ASTM D-751)

Dimensional Stability

< 1.0 %

(ASTM D-1204)

Tear Strength

45 lbf

(ASTM D-751)

Low Temperature Bend

-40°F (-40°C)

(ASTM D-2136)

Application

Application steps

SUBSTRATE PREPARATION

Roofing membrane to receive Sarnatred-V 2.5 shall be clean and dry. Chalk lines on the deck sheet to indicate the location of walkway.



Check all existing deck sheet seams that are to be covered by Sarnatred-V 2.5 with a rounded screwdriver and reweld any inconsistencies before the walkway installation.

APPLICATION

Adhered Roofs

Apply a continuous coat of Sarnacol 2170 or Sarnacol 2170 VC membrane adhesive to the deck sheet and the back of Sarnatred-V 2.5 in accordance with the Application Instructions outlined in the membrane adhesive product data sheet. Do not apply adhesive in the areas of the deck sheet where the Sarnatred-V 2.5 will be hot-air welded. Roll Sarnatred-V 2.5 into the adhesive and press into place with a minimum 75 lb (34 kg) steel roller. Hotair weld the entire perimeter of Sarnatred-V 2.5 to the deck sheet. Check all welds with a rounded screwdriver. Reweld any inconsistencies.



Mechanically Attached Roofs

Adhering Sarnatred-V 2.5 to the deck sheet with Sarnacol 2170 or Sarnacol 2170 VC membrane adhesive as noted in Adhered Roofs is optional. Install Sarnatred-V 2.5 over the deck sheet and hot-air weld the perimeter leaving intermittent weeps as needed of unwelded Sarnatred-V 2.5 along the low side for drainage. Check all welds with a rounded screwdriver. Reweld any inconsistencies.
