Drainage Panel Geonet A

Drainage Panel Geonet A

Prefabricated drainage composite

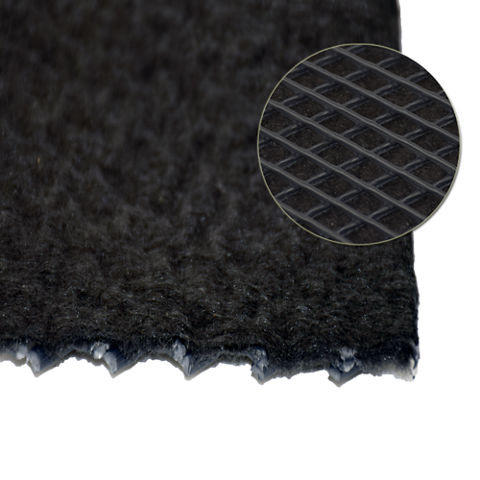

Drainage Panel Geonet A is a high quality prefabricated drainage composite designed to provide continuous free flow of water in both vertical and horizontal applications. The drainage panel has a high density polyethylene drainage net and non-woven geotextile laminated on one side. Water passes freely through the composite where it is gravity fed to discharge.

  • Relieves hydrostatic pressure build-up
  • Maintains high flow under long term conditions
  • Resistant to biological and chemical degradation
  • Resistant to puncture and loading
  • Compatible with electronic leak detection systems

Product Data Sheet Safety Data Sheet Show all documents

Usage

To provide free flow of water in both vertical and horizontal applications    Areas of Application
  • Split Slab
  • Vertical Walls/Property Lines
  • Foundation Slabs
  • High Load Areas


Advantages

  • Relieves hydrostatic pressure build-up
  • Maintains high flow under long term conditions
  • Resistant to biological and chemical degradation
  • Resistant to puncture and loading
  • Compatible with electronic leak detection systems


Packaging

  • 4 ft x 75 ft (1.2 m x 22.8 m) roll, 70 lbs per roll (31.8 kg)
  • 7 ft x 150 ft (2.1 m x 45.7 m) roll, 225 lbs per roll (102.2 kg)

Product Details

Product Information

Chemical Base

High density polyethylene geonet and non-woven filtration fabric laminated to one side

Shelf Life

N/A

Storage Conditions

N/A

Thickness

Core

0.25" (6.35 mm)

(ASTM D-1777)

Mass per Unit Area

0.23 lb/ft2 (1.14 kg/m2)
Technical Information

Resistance to Static Puncture

Fabric

250 lb (1.113 kN)

(ASTM D-6241)

Compression resistance

Core

40,000 psf (1,915 kNm2)

(ASTM D-1621)

Tensile Strength

Fabric

Grab Tensile 100 lb (0.45 kN)

(ASTM D-4632)

Flow Rate

Core Flow

8.5 gpm/ft (106 lpm/m)*

(ASTM D-4716)

* Q at 3,600 psf & Hydraulic Gradient = 1.0 (300 h). Information contained herein is offered solely for the customer’s consideration, investigation and verification. Determination of suitability for use is the sole responsibility of the user.



Fabric Flow

140 gpm/ft2 (5,704 lpm/m2)

(ASTM D-4491)

Opening size

Fabric

70 EOS, US Sieve (0.212 mm)

(ASTM D-4751)

UV Exposure

Fabric

70%

(ASTM D-4335)

@ 500hrs

Application

Application steps

APPLICATION

Drainage Panel Geonet A is installed by an authorized Sika Sarnafil® Waterproofing Applicator. Drainage Panel Geonet A is installed against the completed waterproofing assembly including protection layer. Drainage Panel Geonet A cannot be installed directly against the Sarnafil® waterproofing membrane. Consult with Sika Sarnafil® Regional Offices for further information.
