Sarnadisc RhinoBond

Sarnadisc RhinoBond

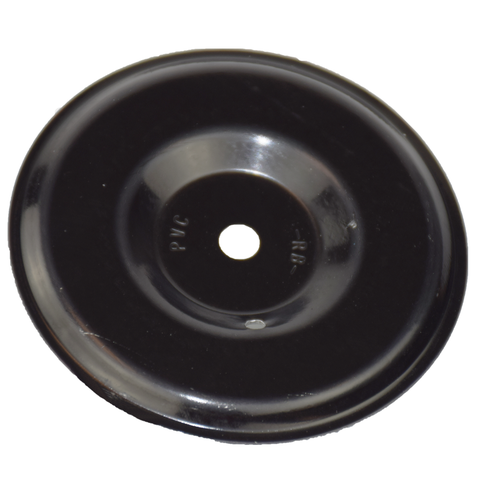

Sarnadisc Rhinobond is a polymer coated plate

Sarnadisc RhinoBond is a specially designed polymer coated plate used with Sarnafasteners or Sikaplan Fasteners to attach Sarnatherm® insulation, Sarnatherm® roof boards, gypsum roof boards, or other Sika approved boards directly to the roof deck or structural purlins prior to the installation of Sarnafil® S 327 membrane or Sikaplan® Fastened membrane. The membrane is field welded to the Sarnadisc RhinoBond by induction welding.

  • Recessed center to provide protection to the membrane underside from abrasion by the fastener head.
  • Zero penetrations of the roof cover.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used with Sarnafasteners or Sikaplan fasteners when attaching Sarnafil® S 327 or Sikaplan® Fastened membrane direct to the roof deck.     Ares of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications


Advantages

  • Recessed center to provide protection to the membrane underside from abrasion by the fastener head.
  • Zero penetrations of the roof cover.

Packaging

500 per pail, 54 lb (24 kg) per pail

Colour

Black Topside

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • ICC Code Compliance – ESR 1157
  • Miami-Dade County













Product Information

Chemical Base

Metal plate with a polymer coating

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Diameter: 3'' (75 mm)
Thickness: 0.028'' (0.7 mm)

Application

Application steps

APPLICATION

Sarnadisc® RhinoBond is positioned on the surface of the insulation board. A Sarnafastener® is set through the center of the disc and set into the roof deck or purlin. The Sarnadisc® RhinoBond holds the insulation in place.
