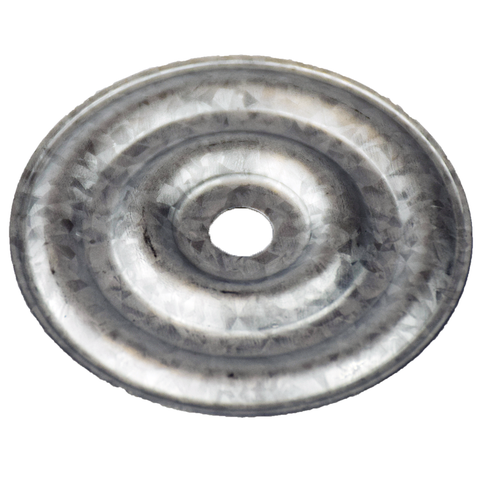

Sarnadisc

Sarnadisc is a high-strength plate used with Sarnafasteners

Sarnadiscis a high-strength plate used with Sarnafasteners to attach the Sarnafil® S 327 or Sikaplan® Fastened roof membrane directly to the roof deck at the base of walls, curbs and other roof penetrations.

Sarnadisc® is a high‐strength steel disc with a smooth surface to provide protection to the underside of Sarnafil® S 327 membrane in mechanically fastened applications.
Product Data Sheet Show all documents

Usage

Used with Sarnafasteners #14, #15 XP, or Fastener CD‐10.     Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications
  • Mechanically Attached Flashings


Advantages

Sarnadisc® is a high‐strength steel disc with a smooth surface to provide protection to the underside of Sarnafil® S 327 membrane in mechanically fastened applications.

Packaging

Sarnadisc® is packaged in boxes of 1000.

Each box weighs approximately 29 lb (13 kg).

Colour

Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • Miami-Dade County








Product Information

Chemical Base

Sarnadisc is a 20 gauge (0.9 mm), 2" (51 mm) diameter SAE 1010 steel plate with an AZ 55 Galvalume coating to meet Factory Mutual 4470 criteria for corrosion resistance.

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Diameter: 2'' (51 mm)

Application

Application steps

APPLICATION INSTRUCTIONS

APPLICATION

Sarnadisc® is positioned on the surface of the S 327 or Sikaplan Fastened membrane with a Sarnafastener or a Sikaplan Fastener is placed through the center of it and then set into the roof deck, clamping the S 327 membrane in place.
