Sarnaplate Accutrac

Sarnaplate Accutrac

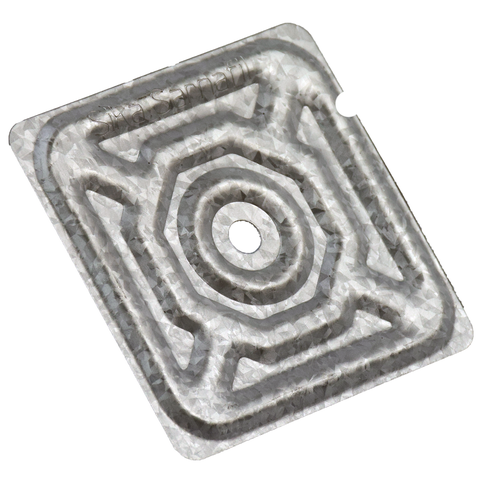

Sarnaplate AccuTrac is a stress plate used with the AccuTrac Tool

Sarnaplate Accutrac is a specially-designed stress plate used with Sarnafasteners to attach an insulation board or roof board directly to the roof deck prior to the installation of the Sarnafil® or Sikaplan® roof membrane. Sarnaplate Accutrac is to be used when fastening insulation or roof boards with the AccuTrac Tool.

  • Improved productivity and for consistency of application.
  • High-rib design to provide protection to the membrane underside from abrasion by the fastener head.
  • Deep reinforcing ribs for superior resistance to bending.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used with the AccuTrac Tool and Sarnafasteners for fastening insulation and roof boards direct to the roof deck.    Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications


Advantages

  • Improved productivity and for consistency of application.
  • High-rib design to provide protection to the membrane underside from abrasion by the fastener head.
  • Deep reinforcing ribs for superior resistance to bending.

Packaging

1000 per pail, 43 lb. (19.5 kg) per pail

Colour

Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • Miami-Dade County

Product Information

Chemical Base

Square flat-bottom plate made from 26 gauge (0.46 mm) stamping of SAE 1010 steel with a Galvalume® coating.

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Length: 3'' (76 mm)
Width: 3'' (76 mm)

Application

Application steps

APPLICATION INSTRUCTIONS

APPLICATION

The Sarnaplate AccuTrac is installed with the AccuTrac Tool, the fastening tool positions the Sarnafastener through the Sarnaplate automatically and sets both in place through the insulation or roof board and into the roof deck.
