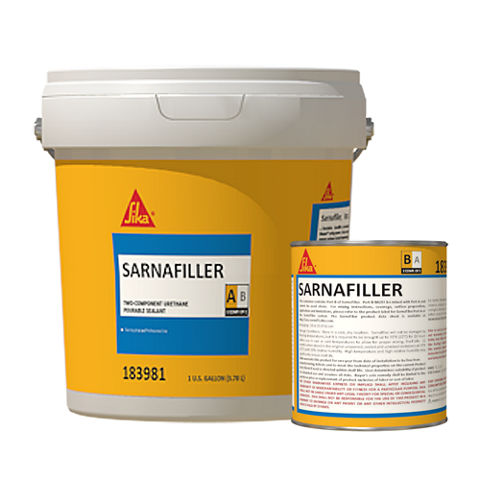

Sarnafiller
Sarnafiller is a two-component urethane pourable sealant used as a pitch pocket filler within Sarnafil® and Sikaplan® roofing systems. It is also used as an adhesive to bond Sarnafil® G 459 grid strip flashing membrane to concrete and masonry surfaces in Sarnafil® waterproofing applications.
- Cures to a tough rubber mass when properly mixed
- Excellent adhesion and low temperature elasticity properties
- Will not flow or creep in elevated temperatures
- Does not contain solvents, asphalt or coal tar
Usage
Pitch pocket filler and Sarnafil® G 459 grid strip flashing membrane adhesive Areas of Application- Sarnafil® and Sikaplan® roofing systems
- Sarnafil® waterproofing systems
Advantages
- Cures to a tough rubber mass when properly mixed
- Excellent adhesion and low temperature elasticity properties
- Will not flow or creep in elevated temperatures
- Does not contain solvents, asphalt or coal tar
Packaging
Two 1 gallon (3.78 L) kits per carton, 20 lbs (9.1 kg) per carton,
50 cartons per pallet.
Each carton contains two 1 gallon (3.78 L) pails of Part A (resin), two 16 oz (0.47 L) cans of Part B (hardener) and one mixing paddle.
Product Details
Chemical Base
Two-component pourable urethane
Shelf Life
12 months when stored in the original unopened, sealed and unmixed containers at 70°F (22°C) with 50 % relative humidity. High temperature and high relative humidity may significantly reduce shelf life.
Storage Conditions
Store in a cool, dry location. Sarnafiller will not be damaged by freezing temperatures, but it is required to be brought up to 70°F (22°C) for 24 hours before use in cool or cold temperatures to allow for proper mixing.
Density
| Part A: 8.3 +/- 0.2 lbs/gallon Part B: 9.2 +/- 0.2 lbs/gallon | (ASTM D-1475) |
Viscosity
| Part A: 65,000 +/- 15,000 cps | (Brookfield RVF TD spindle, 4 RPM 73°F (23°C)) |
Volatile organic compound (VOC) content
7 g/L (A+B Combined)
Shore A Hardness
| 41 - 51 | (ASTM C-661) |
Tensile Strength
| 126 psi (0.87 MPa) | (ASTM D-412) |
Shrinkage
| No visible shrinkage after 14 days | -- |
Application
Pot Life
90 +/- 45 minutes at 70°F (21°C)
Coverage
Pitch Pocket Filler: 231 in3/gal (1000 cm3/L)
Sarnafil® G 459 Grid Strip Flashing: 20 ft2/gal (0.5 m2/L)
SUBSTRATE PREPARATION
All surfaces should be clean, sound, dry, and free of all bond breaking contaminants such as rust, oil, wax and grease. Wipe all new metal with Sika’s Seam Cleaner, acetone, or rubbing alcohol before applying Sarnafiller. Do not use mineral spirits as a cleaner.
MIXING
Mix Part A and Part B with a drill and mixing paddle for a minimum of 5 minutes making sure the material is a uniform black color.
APPLICATION
Pitch Pocket Filler:
Pour the mixed Sarnafiller into the pitch pocket and tool with a paint stirrer to work out any entrapped air. There must be a minimum of 2" (51 mm) between the sides of the pitch pocket and the penetration to allow Sarnafiller to adequately fill the area. Fill the pitch pocket completely to prevent water from collecting within the pitch pocket. Refer to Sika – Roofing details.
Sarnafil® G 459 Grid Strip Flashing:
Chalk lines onto the substrate 12" (305 mm) wide to identify the location of the grid strips. Prime the back of the Sarnafil® G 459 grid strip flashing membrane with Sikaflex® Primer 449. Do not apply primer where the Sarnafil® G 459 grid strip flashing membrane will be welded together at the overlaps. Pour the mixed Sarnafiller onto the substrate between the chalk lines. Spread Sarnafiller with a 1/4" x 1/4" (6.4 mm x 6.4 mm) square notched trowel and completely cover the area between the chalk lines. Immediately set the Sarnafil® G 459 grid strip flashing membrane into Sarnafiller and thoroughly roll-in with a hand roller. Be sure that a small amount of Sarnafiller extends out from the edge of the Sarnafil® G 459 grid strip flashing membrane to ensure 100 % coverage.
For vertical Sarnafil G 459 grid strip flashing membrane installations, use Sikaflex®-11FC as the Sarnafil G 459 grid strip flashing membrane adhesive. Refer to the Sikaflex®-11FC product data sheet.
