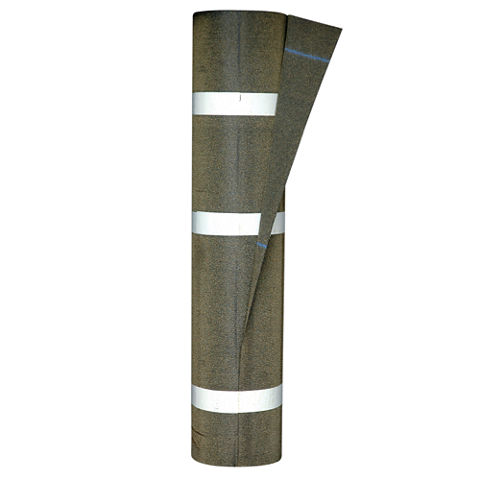

Ply Sheet HA 118

Hot applied SBS polymer modified bitumen non-woven polyester reinforced ply sheet

Ply Sheet HA 118 is a 118 mil (3.0 mm) thick hot applied SBS polymer modified bitumen non-woven polyester reinforced ply sheet. It can be left exposed for up to six (6) months.

  • Tough non-woven polyester mat reinforcement provides dimensional stability
  • Fine mineral aggregate surfacing on underside to facilitate attachment with hot applied asphalt and approved cold applied adhesive
  • Fine mineral aggregate surfacing on topside to accept approved urethane adhesive for membrane attachment
Product Data Sheet Safety Data Sheet Show all documents

Usage

  • Ply sheet within Sarnafil hybrid roofing systems

AREAS OF APPLICATION
  • Sarnafil hybrid roofing systems over light weight insulating concrete, structural concrete, wood, cementitious wood fiber, gypsum and metal deck
  • Vapor retarder direct to concrete deck


Advantages

  • Tough non-woven polyester mat reinforcement provides dimensional stability
  • Fine mineral aggregate surfacing on underside to facilitate attachment with hot applied asphalt and approved cold applied adhesive
  • Fine mineral aggregate surfacing on topside to accept approved urethane adhesive for membrane attachment

Packaging

39.4" (1 m) x 32.8 ft (10 m) roll, 84 lbs (38.1 kg) per roll, 30 rolls per pallet

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • FM Global
  • Underwriters Laboratories
  • Florida Building Code
  • Meets ASTM D6164, Type I, Grade S

Product Information

Chemical Base

SBS polymer modified bitumen with a non-woven polyester mat reinforcement and fine mineral aggregate topside and underside

Shelf Life

N/A

Storage Conditions

Store rolls on end and maintain in an upright position to prevent damage. Store rolls in a clean dry location and cover as necessary to protect rolls from environmental damage such as extreme cold, heat, or moisture.

Thickness

118 mils (3.0 mm)

(ASTM D-5147)

118 mils (3.0 mm) at selvage

(ASTM D-5147)

Mass per Unit Area

78 lb/100ft2 (3808 g/m2)

(ASTM D-5147)
Technical Information

Tensile Strength

Peak load @ 0°F (-18°C)

Machine Direction

Cross Machine Direction

115 lbf/in (20.1 kN/m)

90 lbf/in (15.8 kN/m)

Peak load @ 73.4°F (23°C)

Machine Direction

Cross Machine Direction

85 lbf/in (14.9 kN/m)

65 lbf/in (11.4 kN/m)

Elongation at maximum tensile stress

Ultimate elongation @ 73.4°F (23°C)

Machine Direction

Cross Machine Direction

65%

80%

Elongation

Elongation at peak load @ 0°F (-18°C)

Machine Direction

Cross Machine Direction

35%

40%

Elongation at peak load @73.4°F (23°C)

Machine Direction

Cross Machine Direction

55%

60%

Tear Strength

Tear strength @ 73.4°F (23°C)

Machine Direction

Cross Machine Direction

125 lbf (556 N)

85 lbf (378 N)

Dimensional Stability

Machine Direction

Cross Machine Direction

<0.5%

<0.5%

Low Temperature Bend

Machine Direction

Cross Machine Direction

-15°F (-26°C)

-15°F (-26°C)

Application

Application steps

SUBSTRATE PREPARATION

All surfaces must be clean, sound, dry, and free of loose materials or contaminants such as water, frost, ice, oil and grease that would interfere with proper adhesion and compromise the performance of the product.



In accordance with the ICRI Technical Guideline No. 310.2R-2013, newly poured concrete surfaces must be finished by forming, wood float, steel or power trowel, or broom finished to meet the equivalency of a CSP type surface between a rating of 2 – 5.



Application to structural concrete surfaces and DensDeck Prime require priming with Vapor Retarder Primer TA or Vapor Retarder Primer BE. See Vapor Retarder Primer TA or Vapor Retarder Primer BE product data sheet for additional information.

APPLICATION

Prior to installation, unroll Ply Sheet HA 118 onto the roof surface and allow it to relax. Place Ply Sheet HA 118 in desired position and back roll the product. Apply a full mopping of Type III or Type IV asphalt in accordance with industry standards at a minimum rate of 25 lbs per 100 square feet (1.2 kg/m²). Install Ply Sheet HA 118 so that there are no significant and avoidable air spaces between the ply sheet and the substrate.

Ply Sheet HA 118 can be installed with Sika’s cold applied vapor retarder adhesives.  See Sika’s vapor retarder adhesive product data sheets for additional information.

Overlap side laps 3" (76 mm) and end laps 6" (152 mm).





COVERAGE
97 ft2 (9 m2) per roll
