Sarnabar®

Sarnabar®

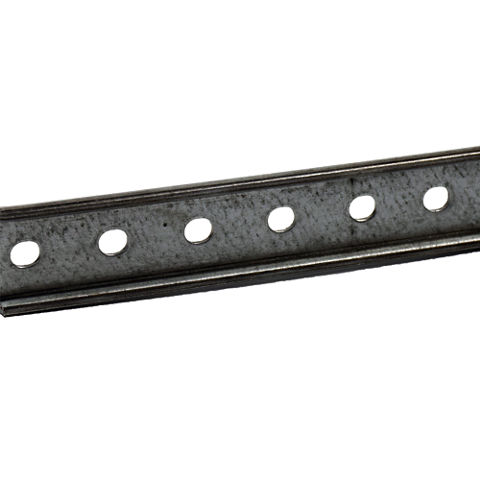

Sarnabar is a heavy duty U shaped bar

Sarnabar is a heavy-duty "U" shaped, roll formed steel bar specifically designed to resist the static and dynamic loads produced during strong winds. Sarnabar distributes the loads uniformly across a series of fastening points. Sarnabar maximizes pull-out and back-out resistance.

  • Ease of application
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used with Sarnafasteners to clamp Sarnafil S 327
Roof Membrane to the roof deck in the Engineered Mechanically Attached system or as additional securement when used with Ballasted and Adhered systems.
  Areas of Application
  • Hurricane Prone Areas
  • Additional Enhancement


Advantages

  • Ease of application

Packaging

  • Individual
  • 10 per bundle

Colour

Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470 (criteria for corrosion resistance)

Product Information

Chemical Base

Formed steel punched with 1/4" (6 mm) holes every 1" (25 mm) o.c. to allow various Sarnafastener spacing options.

14 Gauge Steel post galvanized

Bending Strength: 113 in-lb

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Length: 10 ft (3.05 m)

Width: 1" (25 mm)

Thickness: 0.0785" (2 mm)

Weight: 4.7 lbs (2.13 kg)

Application

Application steps

APPLICATION

Sarnabars are positioned over the top of the membrane
and fastened to the roof deck with Sarnafasteners at a row spacing and fastener spacing determined by the specifications. The Sarnafasteners are set to a depth to clamp the membrane in place without damaging the insulation surface over the roof deck. A membrane coverstrip is then welded over each Sarnabar for water tightness.
