Sarnadisc MAXLoad

Sarnadisc MAXLoad

High strength plate used with Sarnafastener #21 MAXLoad

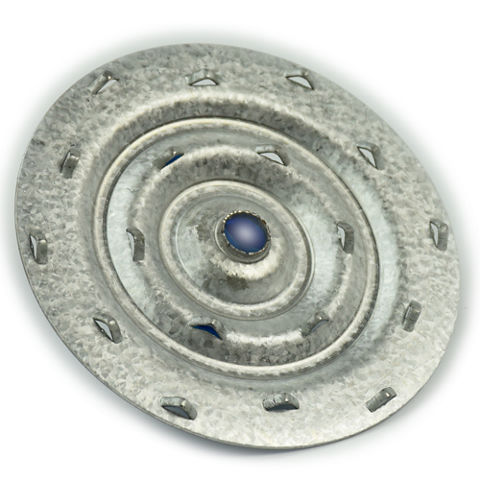

Sarnadisc MAXLoad is a large diameter high strength round plate used with the Sarnafastener #21 MAXLoad to in-seam attach Sarnafil S 327 roof membrane directly to steel decking (22 - 24 gauge) and wood sheathing (>15/32”).

  • Eyehook plate design grips membrane securely.
  • High ribs and an extruded center hole provide increased strength.
  • Round design provides an even distribution of loads and eliminates sharp corners that can damage the insulation or membrane.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used with the Sarnafastener #21 MAXLoad when attaching Sarnafil S 327 membrane to the roof deck.    AREAS OF APPLICATION
  • New Roof Applications
  • Reroof Applications
  • Recover Applications


Advantages

  • Eyehook plate design grips membrane securely.
  • High ribs and an extruded center hole provide increased strength.
  • Round design provides an even distribution of loads and eliminates sharp corners that can damage the insulation or membrane.

Packaging

500 per pail, 52 lbs (23.5 kg) per pail

Colour

Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • ICC Code Compliance – ESR 1157
  • Miami-Dade County
  • Florida Building Code

Product Information

Chemical Base

Round steel plate made from 20 gauge (0.9 mm) Galvalume® coated steel, with two concentric rings eyehooks (14 total).

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Diameter: 3.0" (75 mm)

Application

Application steps

APPLICATION

Sarnadisc MAXLoad is positioned in the seam on the surface of the Sarnafil S 327 membrane at the designated oncenter spacing with a Sarnafastener #21 MAXLoad placed through the center and fastened to approved the roof deck, clamping the Sarnafil S 327 membrane in place.
