Sarnadisc XPN

Sarnadisc XPN

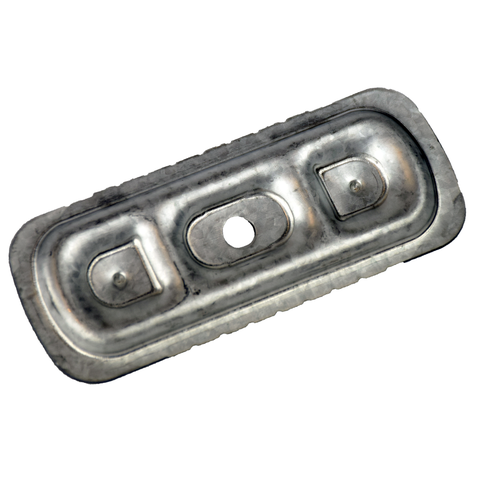

Sarnadisc XPN is a specially-designed high-strength linear plate

Sarnadisc XPN is a specially-designed, high-strength linear plate used with Sarnafasteners #14 and #15 to in-seam attach Sarnafil® S 327 roof membrane to the roof deck.

  • Unique rib design for increased strength
  • Protection provided to the membrane underside from abrasion by the fastener head.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used with the Sarnafasteners® when attaching Sarnafil® S 327 membrane to the roof deck.    Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications






Advantages

  • Unique rib design for increased strength
  • Protection provided to the membrane underside from abrasion by the fastener head.

Packaging

500 per pail, 40 lbs (19 kg) per pail

Colour

Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • ICC Code Compliance – ESR 1157
  • Miami-Dade County

Product Information

Chemical Base

18 gauge (1.2 mm) steel plate with a Galvalume® coating

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Length: 3.75" (95 mm)
Width: 1.5" (38 mm)

Application

Application steps

APPLICATION INSTRUCTIONS

APPLICATION

Sarnadisc XPN is positioned in the seam on the surface of the Sarnafil® S 327 membrane at the designated on-center spacing with a Sarnafastener placed through the center and fastened to the approved roof deck, clamping the membrane in place.
