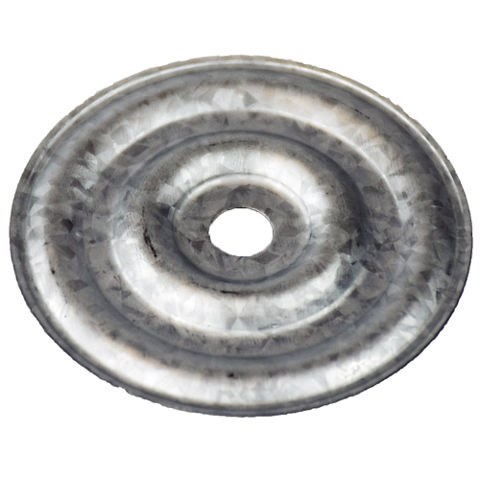

Sarnadisc

Sarnadisc

High-strength plate

Sarnadisc is a high-strength plate used with Sarnafasteners to attach the Sarnafil® S 327 or Sikaplan® Fastened roof membrane directly to the roof deck at the base of walls, curbs, roof penetrations, and intermediate wall securement.

Designed to provide protection to the membrane underside from abrasion by the fastener head.
Product Data Sheet Show all documents

Usage

Used with Sarnafasteners #14, #15 XP, or Fastener CD‐10.     Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications
  • Mechanically Attached Flashings


Advantages

Designed to provide protection to the membrane underside from abrasion by the fastener head.

Packaging

1000 per box, 32 lbs (14.5 kg) per box

Colour

Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • Miami-Dade County

Product Information

Chemical Base

20 gauge (0.9 mm) SAE 1010 steel with AZ 55 Galvalume coating

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Diameter: 2'' (51 mm)

Application

Application steps

APPLICATION INSTRUCTIONS

APPLICATION

Sarnadisc® is positioned on the surface of the S 327 or Sikaplan membrane with a Sarnafastener or a Sikaplan Fastener is placed through the center of it and then set into the acceptable substrate, clamping the membrane in place.
