Sikaplan® Disc

Sikaplan® Disc

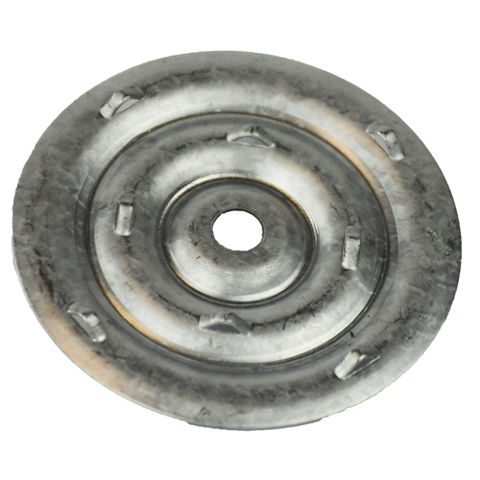

SIKAPLAN DISC is a round steel plate with eyehooks

Sikaplan® Disc is a round steel plate with eyehooks, used with Sikaplan® fasteners to in-seam attach Sikaplan® Fastened membrane to approved roof decks. The eyehooks grip the membrane without initiating tears.

  • Barbed plate design grips membrane securely
  • High ribs and an extruded center hole provide increased strength
  • Round design provides an even distribution of loads
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used with Sikaplan® fasteners to in-seam attach Sikaplan® Fastened membrane to approved roof decks.      Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications


Advantages

  • Barbed plate design grips membrane securely
  • High ribs and an extruded center hole provide increased strength
  • Round design provides an even distribution of loads

Packaging

1000 pieces per pail, 52 lbs (23.5 kg) per pail

Colour

Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • Miami-Dade County

Product Information

Chemical Base

Round steel plate made from 20 gauge (0.9 mm) Galvalume® coated steel, with two concentric rings of 4 eyehooks (8 total).

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Diameter: 2-3/8" (60 mm)

Application

Application steps

APPLICATION INSTRUCTIONS

APPLICATION

The Sikaplan® Disc is positioned in the seam on the surface of the Sikaplan® Fastened membrane at the designated on-center spacing with a Sikaplan® fastener placed through the center and fastened to the approved roof deck, clamping the membrane in place.
