Sikaplan® Fastener #15

Sikaplan® Fastener #15

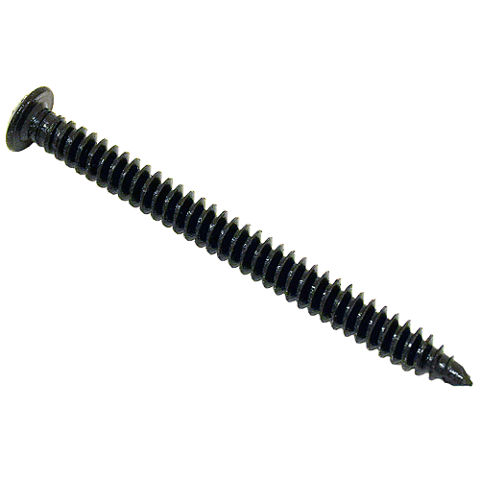

Sikaplan Fastener #15 is a threaded drill point fastener

Sikaplan® Fastener #15 is a threaded drill point fastener used within Sikaplan® roof systems to attach Sikaplan® Fastened or Sarnatherm® insulation, Sarnatherm® roof boards, gypsum roof boards, or other Sika approved boards into steel decking (18 – 24 gauge), wood plank (min. 1–1/2”), or wood sheathing (> 15/32”).

  • Oversized heavy shank and thread diameters.
  • Deep buttress threads for high pullout resistance.
  • Miniature drill point penetrates decks quickly and contributes to exceptional resistance to back out.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used in conjunction with Sikaplan® discs or plates, or Sarnarail® for attachment direct to the roof deck.    Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications


Advantages

  • Oversized heavy shank and thread diameters.
  • Deep buttress threads for high pullout resistance.
  • Miniature drill point penetrates decks quickly and contributes to exceptional resistance to back out.

Packaging

LengthThreadPackagingWeight
1-1/4" (32 mm)Full1000 / Pail12 lb (5.4 kg)
2" (51 mm)Full1000 / Pail20 lb (9.1 kg)
3" (76 mm)Full1000 / Pail29 lb (13.2 kg)
4" (102 mm)3" (76 mm)1000 / Pail38 lb (17.2 kg)
5" (127 mm)4" (102 mm)500 / Pail24 lb (10.9 kg)
6" (152 mm)4" (102 mm)500 / Pail28 lb (12.7 kg)
7" (178 mm)4" (102 mm)500 / Pail34 lb (15.4 kg)
8" (203 mm)4" (102 mm)500 / Pail38 lb (17.2 kg)
9" (229 mm)4" (102 mm)500 / Box42 lb (19.1 kg)
10" (254 mm)4" (102 mm)500 / Box47 lb (21.3 kg)
12" (305 mm)4" (102 mm)500 / Box56 lb (25.4 kg)
14" (356 mm)4" (102 mm)250 / Box32 lb (14.5 kg)
16" (406 mm)4" (102 mm)250 / Box38 lb (17.2 kg)
18" (457 mm)4" (102 mm)250 / Box41 lb (18.6 kg)
20" (508 mm)4" (102 mm)250 / Box44 lb (20 kg)

* One #3 Phillips drive bit is included in each box.

Colour

Black

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • Miami-Dade County

Product Information

Chemical Base

Made from carbon steel, treated with a corrosion-resistant coating to meet the criteria for corrosion resistance.

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

  • Thread Diameter: 0.265" (6.2 mm)
  • Shank Diameter: 0.202" (5.2 mm)
  • Head Diameter: 0.435" (11 mm)
  • Head Style: #3 Phillips

Application

Application steps

APPLICATION INSTRUCTIONS

APPLICATION

Sikaplan® Fastener #15 is fastened straight into the roof deck with a heavy-duty (4 amp minimum), variable speed (0 - 2500 rpm), reversible screwgun with a clutch release and a #3 Phillips drive bit. Sikaplan® Fastener #15 must penetrate steel and wood plank roof decks by 1" (25 mm) and the underside of wood sheathing roof decks by a 1/2" (13 mm). Care must be taken to not damage the roof deck. Choose the correct fastener length and do not overdrive or underdrive the fastener. Pullout tests are required prior to job start when used with existing wood sheathing roof decks for technical evaluation.
