Product Data Sheet Show all documents
Sikaplan® Termination Bar

Sikaplan® Termination Bar

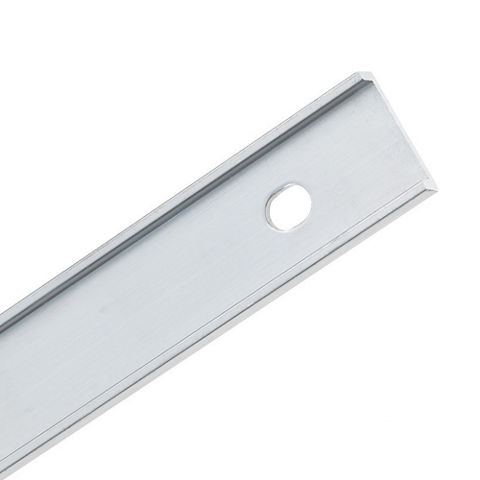

Extruded aluminum bar

Sikaplan Termination Bar is flat aluminum bar with a 45° lip used with approved fasteners to terminate Sikaplan roofing membranes at walls and roof edges.

  • Convenient punched 1/4" x 3/8" (6.4 mm x 9.5 mm) oval holes spaced 6" (15.2 cm) on center
  • 3/16" (4.8 mm) lip formed to a 45° angle

Product Data Sheet Show all documents

Usage

To terminate Sikaplan roofing membranes at walls and roof edges. Also used for Sarnafil® and Sikaplan vented roof terminations.      AREAS OF APPLICATION
  • Wall terminations
  • Roof edge terminations
  • Vented roof terminations
  • Other approved Sikaplan flashing details


Advantages

  • Convenient punched 1/4" x 3/8" (6.4 mm x 9.5 mm) oval holes spaced 6" (15.2 cm) on center
  • 3/16" (4.8 mm) lip formed to a 45° angle


Packaging

25 – 10 ft (3.05 m) bars per tube (250 ft, 76.2 m), 29 lbs (13.2 kg) per tube, 10 tubes per pallet (2500 ft, 762 m)

Colour

Gray

Product Details

Product Information

Chemical Base

Extruded aluminium (6063 T6 alloy) with a mill finish

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Length: 10 ft (3.05m)

Width: 3/4" (19 mm)

Thickness: 0.090" (2.3 mm)

Application

Application steps

APPLICATION

Install Sikaplan Termination Bar with a 1/4" (6 mm) gap between adjoining bars. Cut Sikaplan Termination Bar at inside and outside corners. Do not bend around corners. Fasten Sikaplan Termination Bar with approved fasteners 12" (30.5 cm) on center and within 1" (25 mm) of each bar end. Refer to specific Sikaplan and vented roof detail drawings.



COVERAGE


10 linear feet (3.05 m) per bar
