Sarnafil® G 410-60 SA Feltback EnergySmart

Sarnafil® G 410-60 SA Feltback EnergySmart

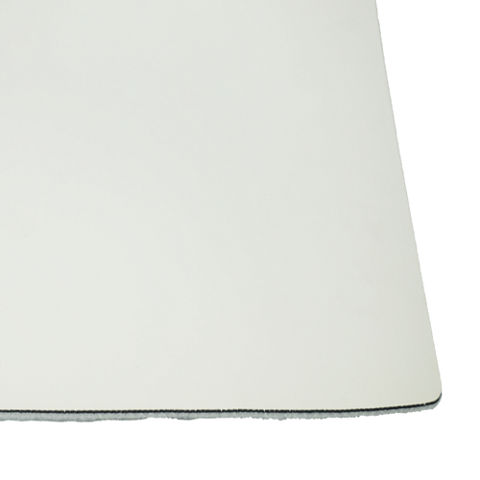

60 mil thick PVC thermoplastic feltback membrane with adhesive backing

Sarnafil® G 410-60 SA Feltback EnergySmart Roof Membrane is a PVC thermoplastic feltback membrane with a factory applied pressure-sensitive adhesive backing, 3" (76 mm) selvage edge and siliconized polyethylene release liner. It is produced with an integral fiberglass mat reinforcement for dimensional stability, is highly reflective, with heat-weldable seams, and a unique lacquer coating applied to the top of the membrane to reduce dirt pick up.

  • Highly reflective
  • VOC free and odor free
  • Factory applied adhesive to reduce on-site installation labor and ensure uniform adhesive application
  • Low temperature application limit of 20°F (-7°C)
  • Guaranteed membrane thickness
  • Excellent dimensional stability
  • Factory applied lacquer coating to reduce dirt pick up
  • Proven membrane performance
  • Hot-air welded seams for long-term performance
  • Superior fire resistance
Product Data Sheet Show all documents

Usage

Used in adhered applications for new roofs, reroofs, and all systems for flashings.    AREAS OF APPLICATION
Sika Approved Insulations and Cover Boards
  • Polyisocyanurate Insulations
  • High Density Polyisocyanurate Roof Boards
  • Gypsum Boards with Primed Facer
  • Plywood


Advantages

  • Highly reflective
  • VOC free and odor free
  • Factory applied adhesive to reduce on-site installation labor and ensure uniform adhesive application
  • Low temperature application limit of 20°F (-7°C)
  • Guaranteed membrane thickness
  • Excellent dimensional stability
  • Factory applied lacquer coating to reduce dirt pick up
  • Proven membrane performance
  • Hot-air welded seams for long-term performance
  • Superior fire resistance

Packaging

60 mil (1.5 mm) Membrane
6.56 ft x 65.6 ft (2 m x 20 m) roll, 204 lbs (92.6 kg) per roll,

10 rolls per pallet

Colour

  • Top: White
  • Bottom: Gray
  • Pressure Sensitive Adhesive: Clear

Currently available in white only.

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • FM Global
  • Underwriters Laboratories
  • Underwriters Laboratories of Canada
  • ICC Code Compliance – ESR 1157
  • Miami-Dade County
  • Florida Building Code
  • NSF/ANSI 347: Platinum Certified
  • California Title 24
  • LEED / Green Globes

Product Information

Chemical Base

High-quality PVC feltback membrane containing ultraviolet light stabilizers, flame retardant, fiberglass reinforcement, with a unique lacquer coating on the top surface and pressure-sensitive adhesive with a removable siliconized polyethylene release liner on the back surface.

Reinforcing Material

Fiberglass

Shelf Life

Sarnafil G 410-60 SA Feltback EnergySmart has a shelf life of up to 12 months. An extension may be offered, when properly stored between 60°F (16°C) and 80°F (27°C), and out of direct sunlight upon technical review.

Storage Conditions

Store rolls on pallets and fully protected from the weather with clean canvas tarpaulins. Unvented polyethylene tarpaulins are not accepted due to the accumulation of moisture beneath the tarpaulin in certain weather conditions that may affect the ease of membrane weldability.

Overall Thickness

60 mil (1.5 mm), minimum thickness

(ASTM D-751)

45 mil

(ASTM Type II D-4434 Spec. Requirement)

Thickness Above Scrim

27 mil

(ASTM D-7635)

16 mil

(ASTM Type II D-4434 Spec. Requirement)

Felt Weight

9 oz/yd2
Technical Information

Resistance to Static Puncture

Pass

(ASTM D-5602)

33 lbf (15 kg)

(ASTM Type II D-4434 Spec. Requirement)

Resistance to Dynamic Puncture

Pass

(ASTM D-5635)

7.3 ft-lbf (10 J)

(ASTM Type II D-4434 Spec. Requirement)

Tensile Strength

80 lbf/in (356 N)

(ASTM D-751)

55 lbf/in (245 N)

(ASTM Type II D-4434 Spec. Requirement)

Tear Strength

17.5 lbf (78 N)

(ASTM D-1004)

10 lbf (45 N)

(ASTM Type II D-4434 Spec. Requirement)

Seam Strength

Pass

(ASTM D-751)

75% of original1

(ASTM Type II D-4434 Spec. Requirement)

1Failure occurs through membrane rupture not seam failure

Linear Dimensional Change

-0.02%

(ASTM D-1204)

0.1%

(ASTM Type II D-4434 Spec. Requirement)

Solar Reflectance

EnergySmart Colors

Initial Solar

Reflectance1

3-Year Solar

Reflectance1

EnergySmart

White2

0.85

0.74

EnergySmart

Tan2

0.73

0.65

EnergySmart

Reflective Gray2

0.73

0.66

EnergySmart

Patina Green3

0.550.46

1 Solar Reflectance testing according to ASTM C-1549

2 Meets LEED, Green Globes, and California's Title 24 criteria for Low and Steep Slope applications

3 Meets LEED, Green Globes, and California's Title 24 criteria for Steep Slope applications

Solar Reflectance Index

EnergySmart Colors

Initial Solar

Reflectance Index1

3-Year Solar

Reflectance Index1

EnergySmart

White2

107

90

EnergySmart

Tan2

89

78

EnergySmart

Reflective Gray2

90

80

EnergySmart

Patina Green3

6451

1 Solar Reflectance Index calculated according to ASTM E1980.
2 Meets LEED, Green Globes, and California's Title 24 criteria for Low and Steep Slope applications.
3 Meets LEED, Green Globes, and California's Title 24 criteria for Steep Slope applications.

Thermal Emittance

EnergySmart Colors

Initial Thermal

Emittance1

3-Year Thermal

Emittance1

EnergySmart

White2

0.86

0.84

EnergySmart

Tan2

0.85

0.86

EnergySmart

Reflective Gray2

0.89

0.88

EnergySmart

Patina Green3

0.860.85

1 Thermal Emittance testing according to ASTM C1371, Slide Method

2 Meets LEED, Green Globes, and California's Title 24 criteria for Low and Steep Slope applications

3 Meets LEED, Green Globes, and California's Title 24 criteria for Steep Slope applications

Low Temperature Bend

Pass

(ASTM D-2136)

Pass -40°F (-40°C)

(ASTM Type II D-4434 Spec. Requirement)

Weight Change after Immersion in Water

1.9%

+ 3.0%

(ASTM D-570)

(ASTM Type II D-4434 Spec. Requirement)

UV Exposure

Pass

5,000 hours

(ASTM G-154)

(ASTM Type II D-4434 Spec. Requirement)

Cracking

(7x magnification)

None

Crazing

(7x magnification)

None

Retention of Properties after Heat Ageing

Breaking Strength, % of original: Pass

(ASTM D-751)

Elongation, % of original: Pass

(ASTM D-751)

Breaking Strength, % of original: 90(ASTM Type II D-4434 Spec. Requirement)
Elongation, % of original: 90

Application

Application steps

APPLICATION

Sarnafil G 410-60 SA Feltback EnergySmart is installed after proper preparation of the approved substrate. The membrane is unrolled and positioned in place with the selvage edge lapping the adjacent roll to allow for the 3" (76 mm) side lap. Fold back half of the sheet onto itself in the long direction and carefully cut the release liner without damaging the membrane. Peel back 3" - 5" (76 mm - 127 mm) of the release liner and press firmly onto the substrate. Weight may be necessary on the membrane when first starting. Continue removing the release liner from the membrane in a smooth, wrinkle-free manner while maintaining the 3" (76 mm) side lap. Immediately roll the membrane with a minimum 75 lb (34 kg) steel roller. Remove the remaining release liner from the other half of the membrane using the above process and immediately roll the membrane with the steel roller. Sarnafil G 410-60 SA Feltback EnergySmart side lap seams are heat-welded together by trained operators using hot-air welding equipment. End laps and all cut edges are butted together and an 8" (203 mm) Sarnafil G 410 coverstrip is hot-air welded over the butt and cut edge joints.
