Sikaplan® Fastened-60 EnergySmart

Sikaplan® Fastened-60 EnergySmart

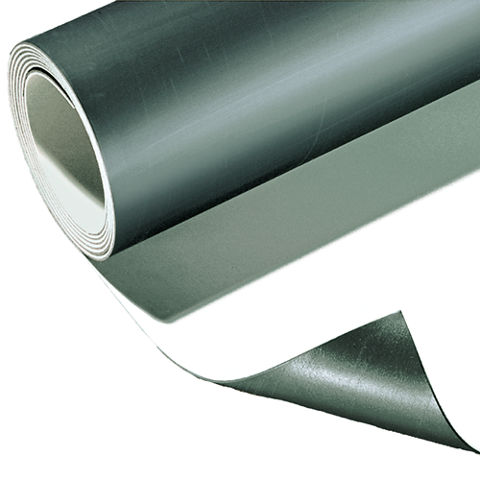

60 mil thick PVC thermoplastic membrane

Sikaplan® Fastened-60 EnergySmart Roof Membrane is a PVC thermoplastic membrane produced with a polyester scrim reinforcement. Sikaplan Fastened-60 utilizes the Pro-Weld™ visual indicator to provide real-time feedback that the proper seam welding temperature and speed settings are being used during installation.

  • Highly reflective
  • Excellent tear strength resistance
  • Factory applied lacquer coating to reduce dirt pick up
  • Hot-air welded seams for long-term performance
  • Pro-WeldTM visual welding temperature indicator1
1White membrane only
Product Data Sheet Safety Data Sheet Show all documents

Usage

Mechanically attached using various attachment components over approved substrates. It can also be used in adhered applications to approved substrates.    AREAS OF APPLICATION
  • In‐seam disc systems
  • In‐seam batten, double‐weld systems
  • RhinoBond® systems
  • Adhered systems
  • New construction and reroofing


Advantages

  • Highly reflective
  • Excellent tear strength resistance
  • Factory applied lacquer coating to reduce dirt pick up
  • Hot-air welded seams for long-term performance
  • Pro-WeldTM visual welding temperature indicator1
1White membrane only

Packaging

60 mil (1.5 mm) Membrane

10 ft x 100 ft (3 m x 30 m) roll, 343 lbs (156 kg) per roll,

8 rolls per pallet

5 ft x 100 ft (1.5 m x 30 m) roll, 172 lbs (78 kg) per roll,

12 rolls per pallet

Colour

  • Top: White, Reflective Gray, and Tan
  • Bottom: Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • FM Global
  • Underwriters Laboratories
  • Underwriters Laboratories of Canada
  • ICC Code Compliance – ESR 1157
  • Miami‐Dade County
  • Florida Building Code
  • California Title 24
  • LEED/Green Globes




Product Information

Chemical Base

Thermoplastic PVC membrane containing ultraviolet light stabilizers, flame retardant and polyester scrim reinforcement with a unique lacquer coating on the top surface.

Recycled Content

9% Pre‐consumer, 1% Post‐consumer

Reinforcing Material

Polyester

Shelf Life

N/A

Storage Conditions

Store rolls on pallets and fully protected from the weather with clean canvas tarpaulins. Unvented polyethylene tarpaulins are not accepted due to the accumulation of moisture beneath the tarpaulin in certain weather conditions that may affect the ease of membrane weldability. Refer to Technical Bulletin 24-02 for additional storage information for rolls utilizing the Pro-Weld visual welding temperature indicator.

Overall Thickness

60 mil (1.5 mm), nominal

45 mil

(ASTM D-751)

(ASTM Type III D-4434 Spec. Requirement)

Thickness Above Scrim

24 mil

16 mil

(ASTM D-7635)

(ASTM Type III D-4434 Spec. Requirement)
Technical Information

Resistance to Static Puncture

Pass

33 lbf (15 kg)

(ASTM D-5602)

(ASTM Type III D-4434 Spec. Requirement)

Resistance to Dynamic Puncture

Pass

14.7 ft-lbf (20 J)

(ASTM D-5635)

(ASTM Type III D-4434 Spec. Requirement)

Tensile Strength

303 lbf (1348 N)

200 lbf (890 N)

(ASTM D-751)

(ASTM Type III D-4434 Spec. Requirement)

Tear Strength

45 lbf (200 N)

45 lbf (200 N)

(ASTM D-751)

(ASTM Type III D-4434 Spec. Requirement)

Seam Strength

Pass

75% of original1

(ASTM D-751)

(ASTM Type III D-4434 Spec. Requirement)

1 Failure occurs through membrane rupture not seam failure.

Linear Dimensional Change

0.24%

0.5%

(ASTM D-1204)

(ASTM Type III D-4434 Spec. Requirement)

Solar Reflectance

EnergySmart Colors

Initial Solar

Reflectance1

3-Year Solar

Reflectance1

EnergySmart

White

0.850.75

EnergySmart

Reflective Gray

0.730.66

EnergySmart

Tan

0.720.65

1 Solar Reflectance testing according to ASTM C-1549.

Solar Reflectance Index

EnergySmart Colors

Initial Solar

Reflectance Index1

3-Year Solar

Reflectance Index1

EnergySmart

White

10693

EnergySmart

Reflective Gray

8980

EnergySmart

Tan

8978

1 Solar Reflectance Index calculated according to ASTM E-1980.

Thermal Emittance

EnergySmart Colors

Initial Thermal

Emittance1

3-Year Thermal

Emittance1

EnergySmart

White

0.890.90

EnergySmart

Reflective Gray

0.890.88

EnergySmart

Tan

0.890.88

1 Thermal Emittance testing according to ASTM C-1371, Slide Method.

Low Temperature Bend

Pass

Pass ‐40°F (‐40°C)

(ASTM D-2136)

(ASTM Type III D-4434 Spec. Requirement)

Weight Change after Immersion in Water

2.5%

± 3.0%

(ASTM D-570)

(ASTM Type III D-4434 Spec. Requirement)

UV Exposure

Pass

5,000 hours

(ASTM G-154)

(ASTM Type III D-4434 Spec. Requirement)

Cracking

(7x magnification)

None

Crazing

(7x magnification)

None

Retention of Properties after Heat Ageing

Breaking Strength, % of original: Pass

Elongation, % of original: Pass

Breaking Strength, % of original: 90

Elongation, % of original: 90

(ASTM D-751)

(ASTM D-751)

(ASTM Type III D-4434 Spec. Requirement)

Application

Application steps

APPLICATION

Sikaplan Fastened is installed on acceptable substrates and fastened to the roof deck using the approved attachment method. In adhered applications, the membrane is unrolled into approved Sikaplan or Sarnacol adhesive in accordance with Sika's technical requirements and then pressed into place with a minimum 75 lb (34 kg) steel roller. The membrane is heat‐welded together by trained mechanics using hot‐air welding equipment. Refer to Technical Bulletin 24-02 for Pro-Weld visual welding temperature indicator application information. Sikaplan Fastened can be used for flashings on Sikaplan roof projects.
