Sarnafil® G 410-60 Textured
Sarnafil® G 410-60 Textured Roof Membrane is a PVC thermoplastic membrane produced with an integral fiberglass mat reinforcement for excellent dimensional stability, with heat‐weldable seams, and a textured surface.

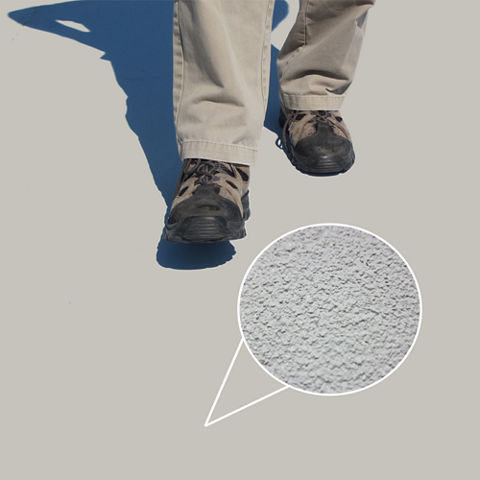

- Embossed surface
- Excellent dimensional stability
- Factory applied lacquer coating to reduce dirt pick up
- Hot‐air welded seams for long‐term performance
- Superior fire resistance
- Proven membrane performance
Usage
Sarnafil G 410 is used in adhered applications with various adhesives, over various substrates. AREAS OF APPLICATION- New Roofs
- Reroofs
- Recovers
Advantages
- Embossed surface
- Excellent dimensional stability
- Factory applied lacquer coating to reduce dirt pick up
- Hot‐air welded seams for long‐term performance
- Superior fire resistance
- Proven membrane performance
Packaging
60 mil (1.5 mm) Membrane* (Reflective Gray)
10 ft x 100 ft (3.05 m x 30.5 m) roll, 390.22 lbs (177 kg) per roll 8 rolls per pallet
5 ft x 100 ft (1.52 m x 30.5 m) roll, 195.11 lbs (88.5 kg) per roll 12 rolls per pallet
60 mil (1.5 mm) Membrane* (White and Reflectrive Gray)
6.56 ft x 65.6 ft (2 m x 20 m) roll, 168 lbs (76 kg) per roll 19 rolls per pallet
* Made to order, minimum volume required, extended production lead times. Consult with Sika – Roofing representative for further information.
Colour
- Top: White, Reflective Gray
- Bottom: Dark Gray
Product Details
APPROVALS / STANDARDS
- FM Global
- Underwriters Laboratories
- ICC Code Compliance – ESR 1157
- Miami‐Dade County
- Florida Building Code
- LEED / Green Globes
- NSF/ANSI 347: Platinum Certified
Chemical Base
High quality, PVC membrane containing ultraviolet light stabilizers, flame retardant and fiberglass reinforcement.
Reinforcing Material
Fiberglass
Shelf Life
N/A
Storage Conditions
Store rolls on pallets and fully protected from the weather with clean canvas tarpaulins. Unvented polyethylene tarpaulins are not accepted due to the accumulation of moisture beneath the tarpaulin in certain weather conditions that may affect the ease of membrane weldability.
Top surface
Textured
Overall Thickness
60 mil (1.5 mm), minimum thickness 45 mil | (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
Thickness Above Scrim
Exceed 16 mil | (ASTM D-7635) (ASTM Type III D-4434 Spec. Requirement) |
Resistance to Static Puncture
Pass 33 lbf (15 kg) | (ASTM D-5602) (ASTM Type II D-4434 Spec. Requirement) |
Resistance to Dynamic Puncture
Pass 7.3 ft-lbf (10 J) | (ASTM D-5635) (ASTM Type II D-4434 Spec. Requirement) |
Tensile Strength
80 lbf/in (356 N) 55 lbf/in (245 N) | (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
Tear Strength
17.5 lbf (78 N) 10 lbf (45 N) | (ASTM D-1004) (ASTM Type II D-4434 Spec. Requirement) |
Seam Strength
Pass 75% of original2 | (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
2 Failure occurs through membrane rupture not seam failure
Linear Dimensional Change
-0.02% 0.1% | (ASTM D-1204) (ASTM Type II D-4434 Spec. Requirement) |
Low Temperature Bend
Pass Pass ‐40°F (‐40°C) | (ASTM D-2136) (ASTM Type II D-4434 Spec. Requirement) |
Weight Change after Immersion in Water
Pass ± 3.0% | (ASTM D-570) (ASTM Type II D-4434 Spec. Requirement) |
UV Exposure
10,000 hours 5,000 hours | (ASTM G-154) (ASTM Type II D-4434 Spec. Requirement) |
Cracking (7x magnification) | None |
Discoloration (by observation) | Negligible |
Crazing (7x magnification) | None |
Retention of Properties after Heat Ageing
Tensile Strength, % of original: Pass Elongation, % of original: Pass Tensile Strength, % of original: 90 Elongation, % of original: 90 | (ASTM D-3045) (ASTM D-751) (ASTM Type II D-4434 Spec. Requirement) |
Application
APPLICATION
Flip over Sarnafil® G 410-60 Textured membrane after unrolling so the texture is visible. Make sure Sarnafil G 410 Textured is installed with the textured side of the membrane facing up. Sarnafil G 410 is installed after proper preparation of the approved substrate. The membrane is unrolled into Sarnacol® adhesive in accordance with Sika’s technical requirements and then pressed into place with a minimum 75 lb (34 kg) steel roller. Sarnafil G 410 seams are heat‐welded together by trained operators using hot‐air welding equipment. Different Sarnacol adhesives require different application methods. Please consult Sika’s Specifications or Applicator Handbook for detailed installation procedures.
