2016
Indianapolis, Indiana

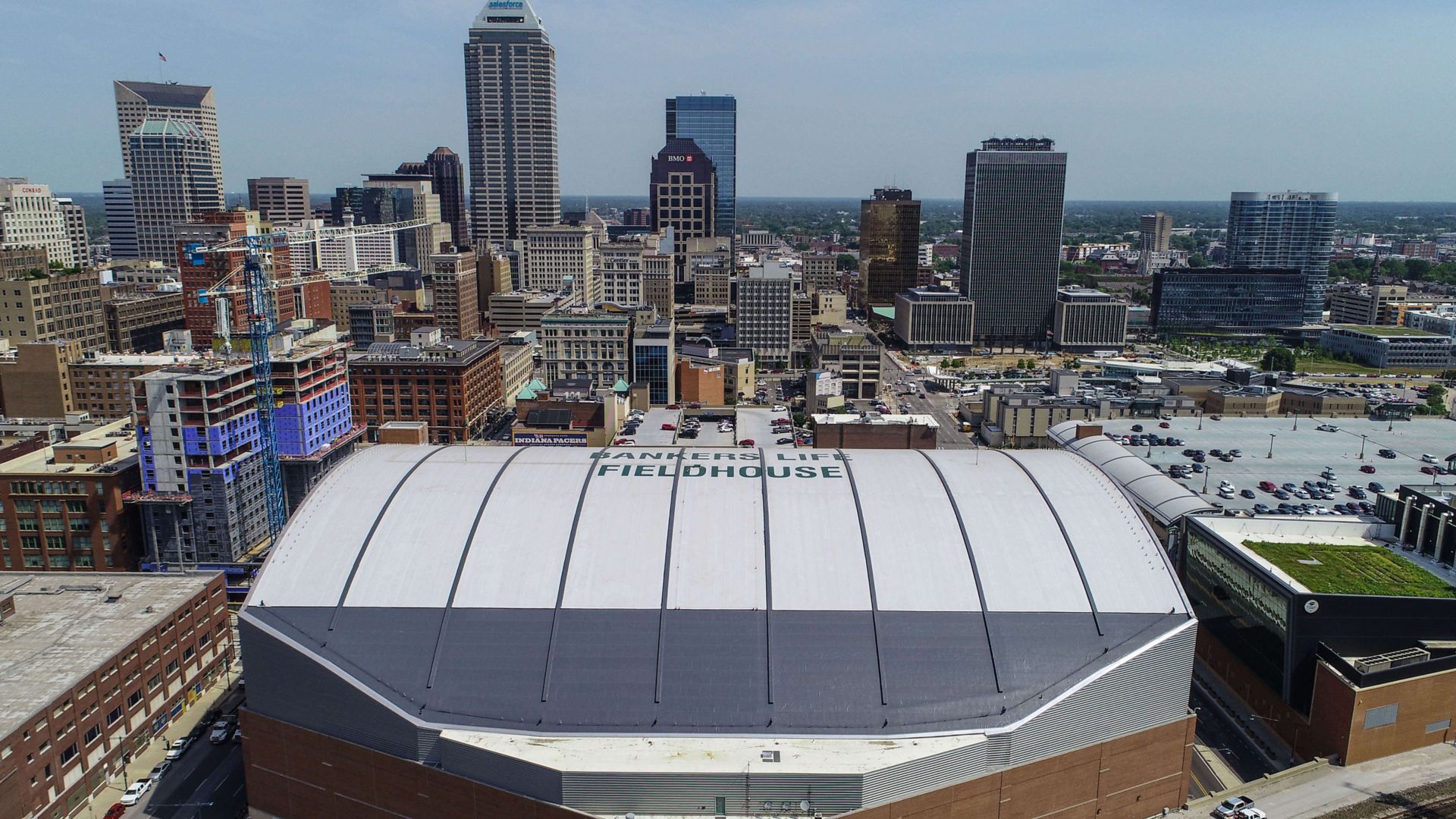

Midland and Sika Roofing Team up on Bankers Life Fieldhouse Roof
The wettest May in a decade, unscheduled practices for an NBA team in the playoffs and a celebrity rapper making the roof shake during his sound check were just some of the challenges Midland Engineering Company, Inc., of South Bend, Indiana, faced when installing a new roof on Bankers Life Fieldhouse. That’s not including the barrel shaped roof, multiple slopes of 3/12, 5/12, and 9/12, and a location smack in the middle of downtown Indianapolis. Fortunately, due to great teamwork between the owner, architect, construction manager and Sika Roofing, the project was completed on time and without incident.
Owner
Capital Improvement Board of Managers
of Marion County, Indiana
Roofing Contractor
Midland Engineering Company, Inc.
South Bend, Indiana
Architect
Wiss, Janney, Elstner Associates, Inc.
Indianapolis, Indiana
Construction Manager
AECOM Hunt
Indianapolis, Indiana
Roofing System
Adhered Roof using 60 mil Sarnafil G 410
membrane in Light Gray and Lead Gray
Project Size
153,900 square feet
A Roof With a Track Record
The arena is home to the NBA’s Indiana Pacers, the WNBA’s Indiana Fever and host to many other events. So when its roof started failing, ownership wanted to find a roofing system that was dependable and could be installed without interrupting the facility’s operations and activities. Architect Wiss, Janney, Elstner Associates, Inc. (WJE) of Indianapolis specified the Sarnafil Adhered System.
“We like the Sarnafil membrane because of its track record with quality and performance over the decades,” said Logan Cook, associate III at WJE. “We also appreciate Sika Roofing’s responsiveness and technical support.”
“We’ve been working with Sika Roofing for 45 years, and have a very strong relationship with them,” remarked Ken Sage, vice president, business development at Midland. “The Sarnafil system is a high quality product and fits with our thinking.
“Like Fixing an Airplane While it is Flying”
The roofing project called for removing the existing roofing down to the deck, which included taking off two mechanically attached roofing membranes (one PVC and one EPDM), 1.5-inch polyisocyanurate and a gypsum cover board. Midland then installed a gypsum thermal barrier, Vapor Retarder SA 31, two layers of 2-inch polyisocyanurate, a gypsum cover board and then adhered the Sarnafil membrane. All of this was done on a very busy arena in the middle of the city.
“We are in the middle of downtown and have basketball games, concerts, circuses and other events going on all the time,” said Tom Boyle, director of operations for the Capital Improvement Board of Managers of Marion County. “Working on the roof was like fixing an airplane while it’s flying!”
Safety, Security and Scaffolding
Safety – of both the roofers and the building’s patrons – was another concern. “Workers on the 5/12 and 9/12 slopes were always tied off, and we had a full-time safety officer who did weekly safety audits of the project,” Garber explained. Despite 50 workers putting in more than 25,000 man hours on the project, not a single injury occurred.
Scaffolding was designed to move both the crew and materials, with additional scaffolding installed above sidewalks when the crew was working on the roof perimeter. “We had to make sure the scaffolding was maintained and secured from the general public,” Garber continued.“We also hired security to watch the scaffolding during arena events.”
Winning With Teamwork
It was this teamwork, creative problem solving and professionalism that allowed Midland, AECOM Hunt, WJE and Sika Roofing to deliver a roof that looks aesthetically pleasing and offers long-term durability and performance.
“This project was a highlight for WJE,” Cook remarked. Schoettle said, “The roof is doing well and I would definitely use the Sarnafil system again.”
Boyle added, “The roof looks great and we’ve had many compliments on how it looks. It really pops up against the Indianapolis skyline.”
Sounds like another victory at Bankers Life Fieldhouse.
